Heat
Exchangers

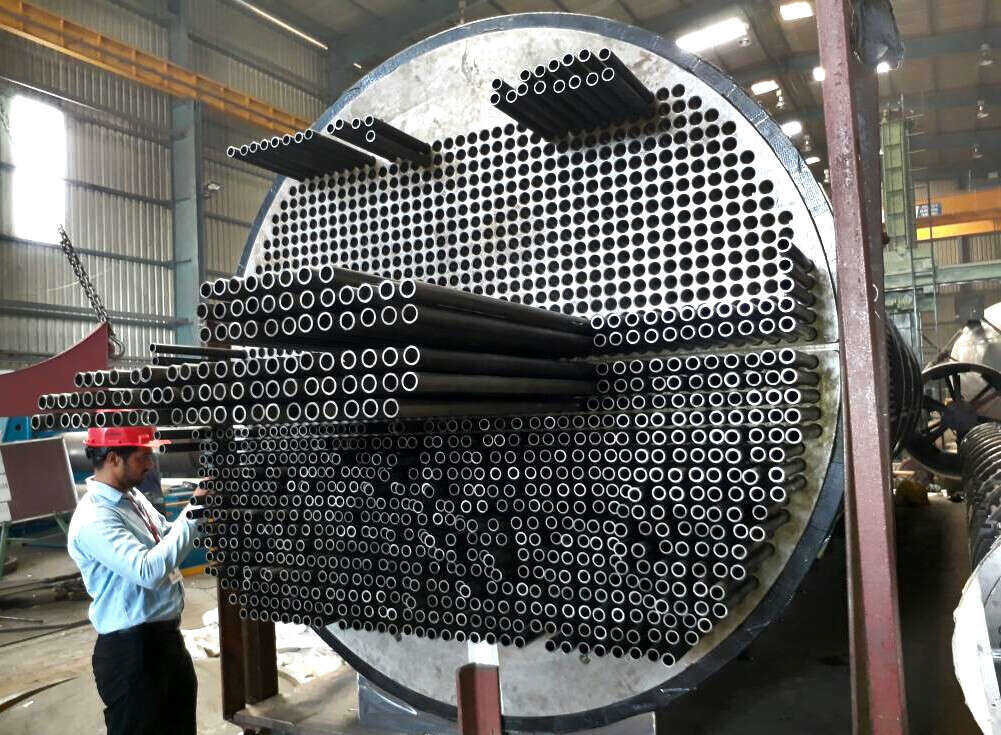

Stacked Heat Exchanger

Stripper Water Cooler
  • Scope of Work : Design and Analysis on PV-Elite (with Manual Calculations) + Detail Engineering
  • Design Code : ASME Sec. VIII Div. 1 (2015 ed.) + API 660 (9th ed.) + TEMA (CL-"R")
  • Type : AES Horizontal
  • Size : 1210 mm Shell ID X 6000 mm Tube Length
  • Number of Tubes : 888 per HX
  • Fabricated Weight : 20 MT per HX
  • Empty Weight : 28.2 MT per HX
  • MOC (Shell-side / Channel-side) : CS / CS (ASME)

Dip Overhead Condenser

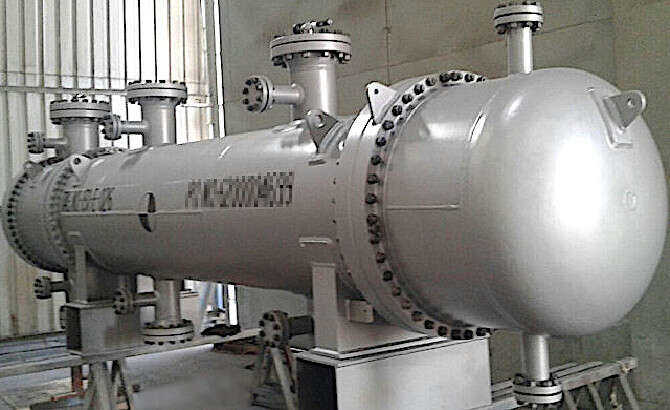

Floating Head Heat Exchanger
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Sec. VIII Div. 1 + API 660 + TEMA (CL-"R")
  • Type : AES Horizontal
  • Pressure : Shell-side — 8.2 / FV; Tube-side — 10 / FV kg/cm2
  • Temperature : Shell-side — 100/230°C; Tube-side — 65°C
  • Fluid : Shell-side — LGP + IP; Tube-side — Cooling Water
  • Size : ID 480 mm X 3300 TL-TL X 192 tubes of OD 19.05 mm on Triangular Pitch

Dip Side Stripper Reboiler

Floating Head Heat Exchanger
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Sec. VIII Div. 1 + API 660 + TEMA (CL-"R")
  • Type : AHS Horizontal
  • Pressure : Shell-side — 18 / FV; Tube-side — 23 / FV kg/cm2
  • Temperature : Shell-side & Tube-side — 150°C
  • Size : ID 790 mm X 3200 TL-TL X 328 tubes of 1" on Triangular Pitch

Fixed Tube Sheet Heat Exchangers

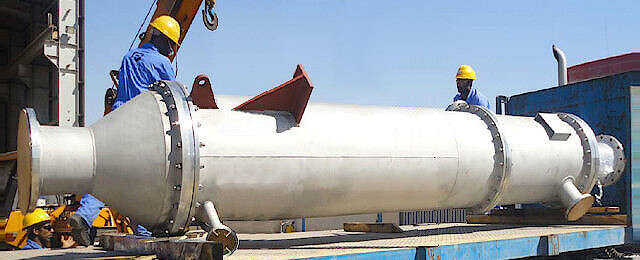

Fixed Tube Sheet Extended as Flange
  • Scope of Work : Design and Detail Engineering
  • Design Code : ASME Sec. VIII Div. 1 + TEMA (CL-"R")
  • Type : BEM Horizontal
  • Pressure : Shell-side & Tube-side — 5 / 0.5 + FV bar(g)
  • Temperature : Shell-side — 150°C; Tube-side — 200°C
