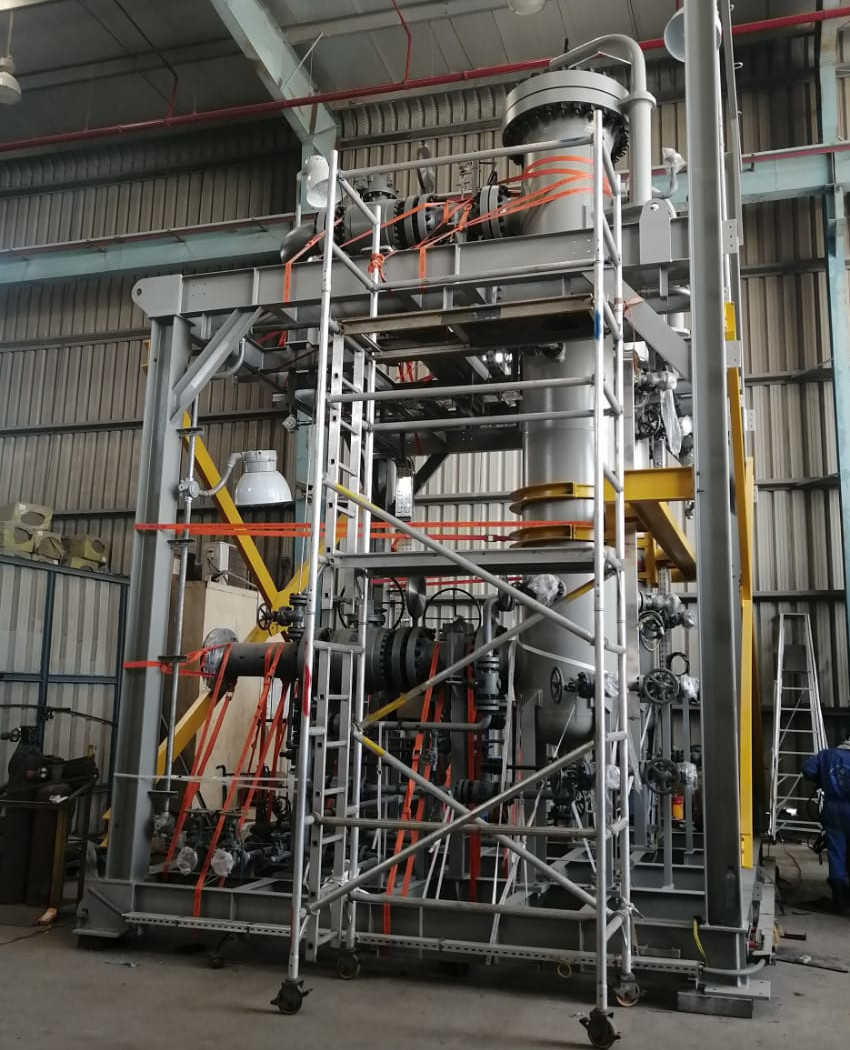

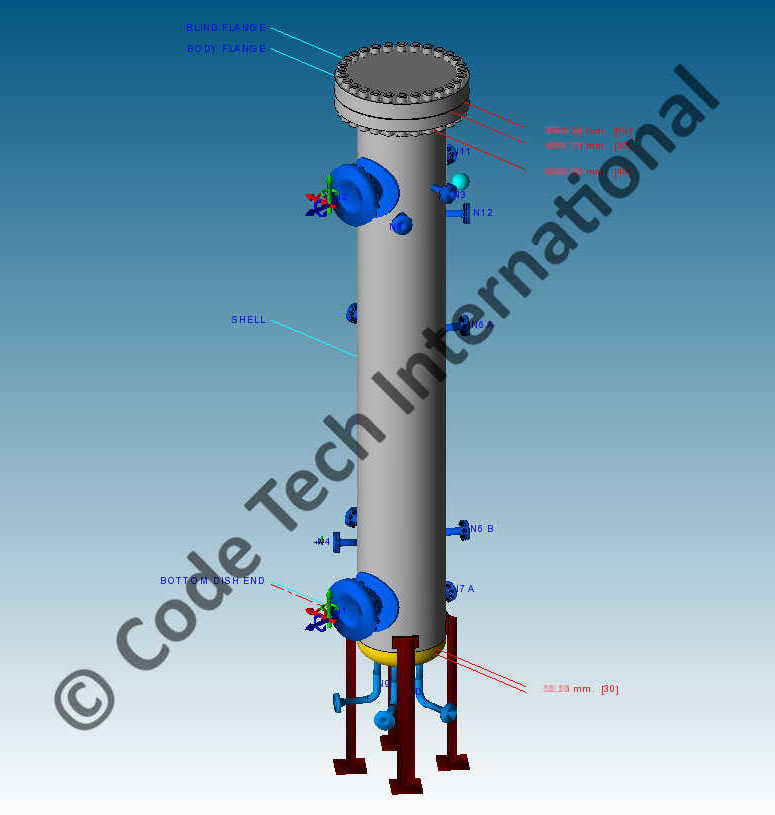

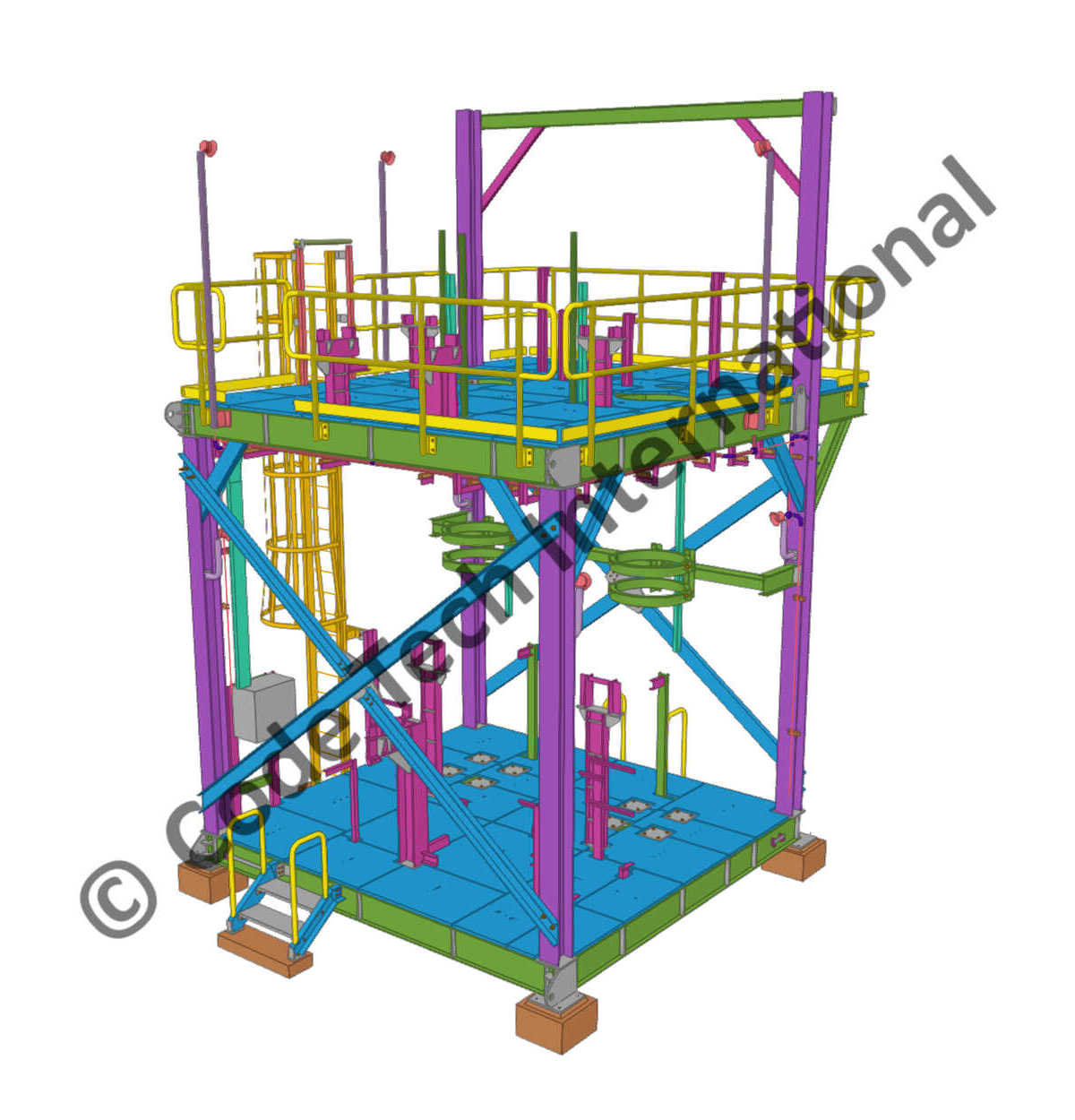

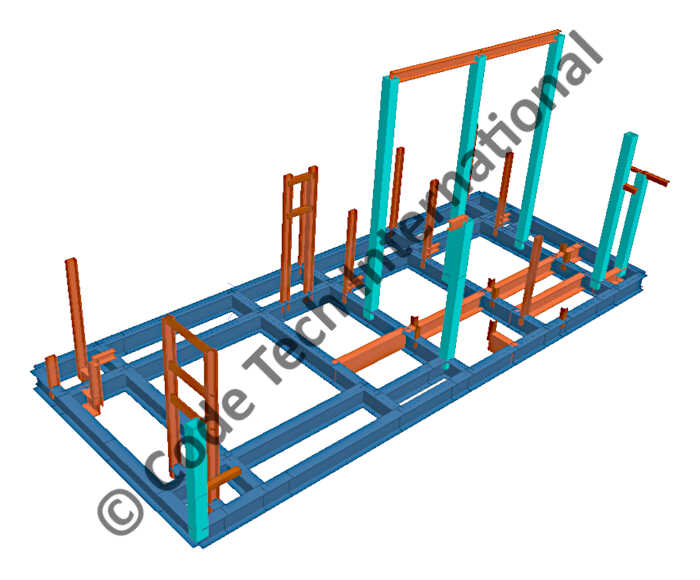

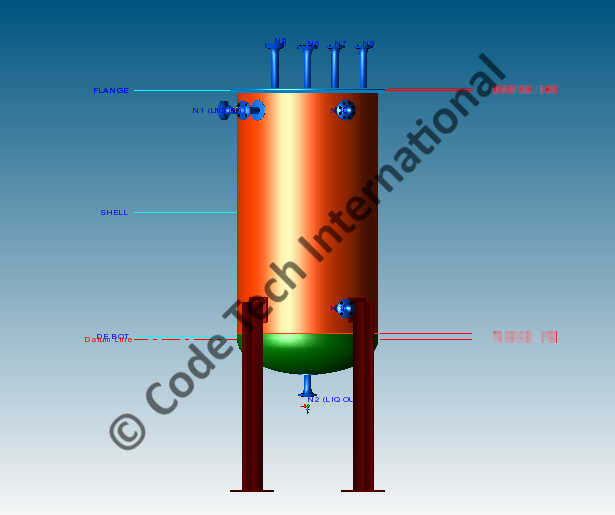

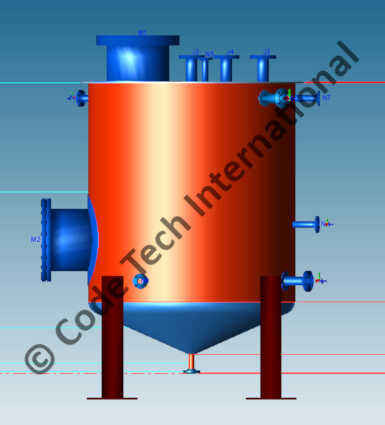

Corrosion Inhibitor Injection Skid Package

  • Scope of Work : Vessel Design, Piping (incl. 3D Modeling), Skid Structure Analysis and Detail Engineering
  • Capacity: 4.34 m3
  • MOC: SS316L
  • Site: Kuwait

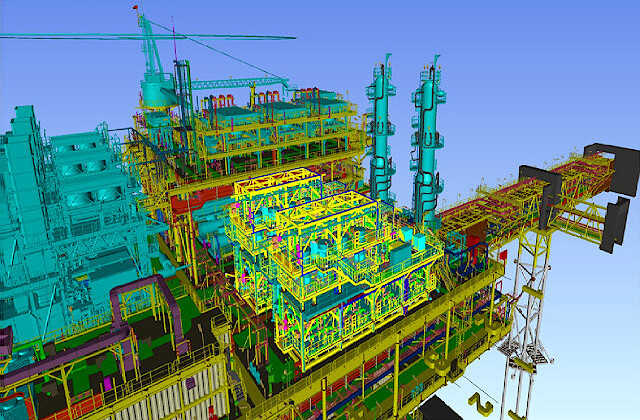

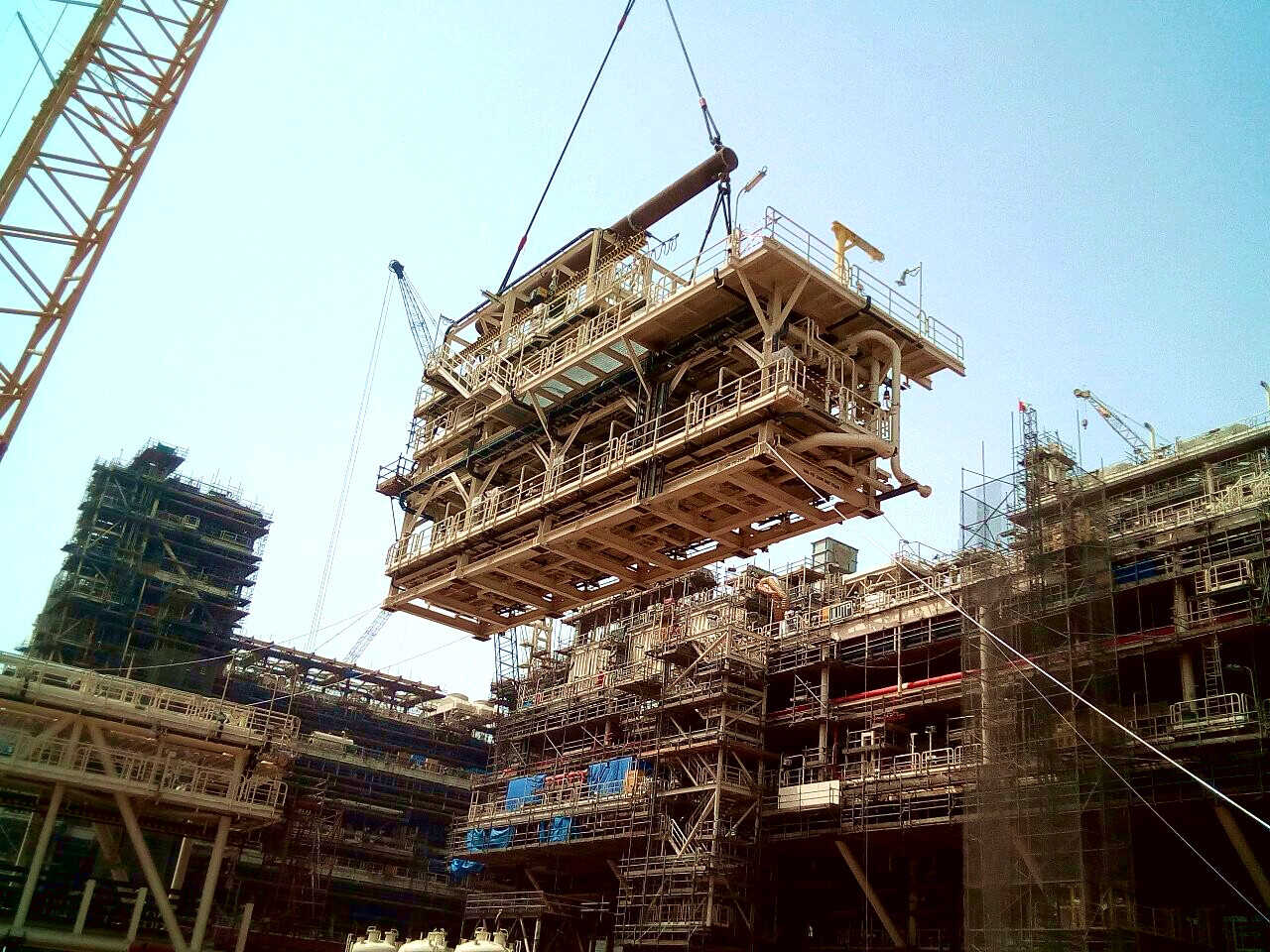

Multimedia Filter Package

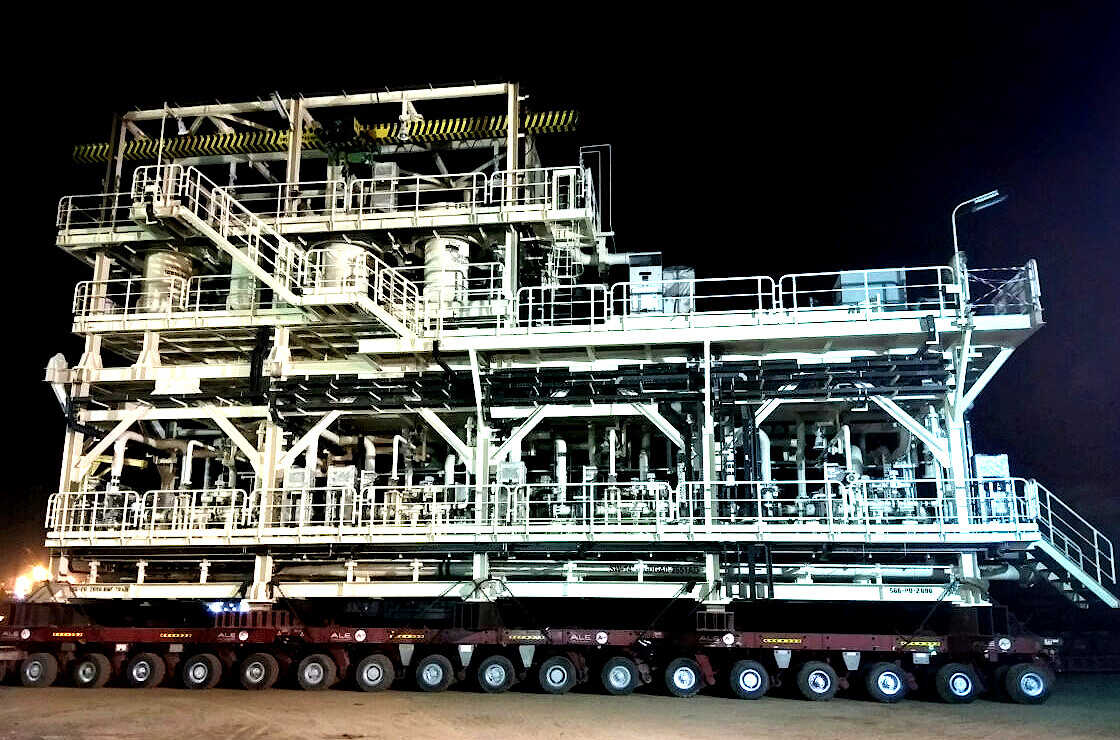

Umm Lulu Super Complex Phase-II
  • Scope of Work : Complete Package Design, Analysis and Detail Engineering
  • Size : 24 m x 24 m x 13 m ht.
  • Capacity : 900 m3
  • Pressure : 14 bar(g)
  • MOC Piping : SDSS + GRE
  • MOC Vessels : SDSS 32760
  • Site: Abu Dhabi, U.A.E.

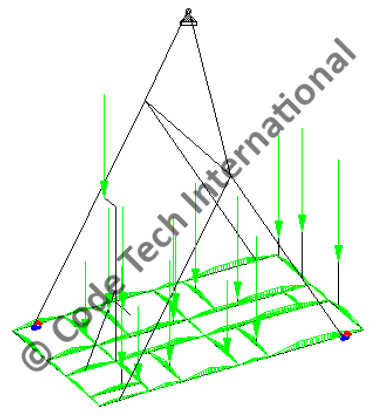

Filter Skid Package

  • Scope of Work :
    — 3D-modelling of Skid Structure
    — Design, Analysis and Detailing of Skid Structure
    — Piping Stress Analysis
    — Pipe Routing and Piping Isometric Preparation
    — Pipe Support Arrangement and Detailing
    — Foundation Load Calculation for Complete Package
    — Lifting Load Calculation
    — Design and Detailing of Complete Package
  • Site: Abu Dhabi, U.A.E.

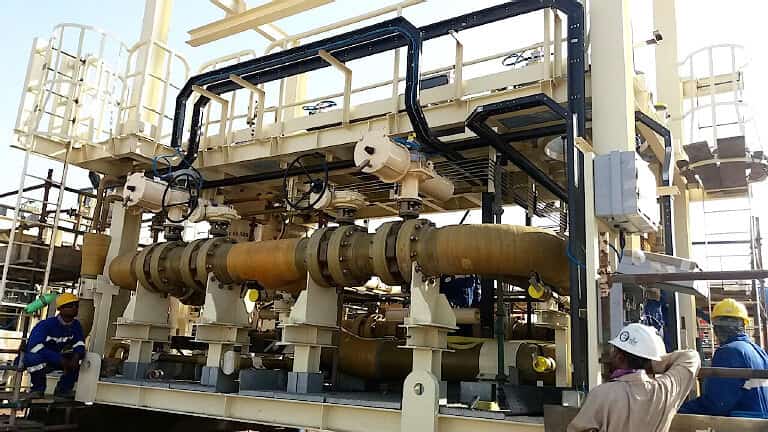

Self-cleaning Filter Skid

Offshore Skid Package
  • Scope of Work : Complete Package Design, Analysis and Detail Engineering
  • Size : 6.3 m X 4.7 m X 4 m ht.
  • Piping MOC : SDSS + GRE
  • Vessels MOC : SDSS 32760
  • Site : Abu Dhabi, U.A.E.

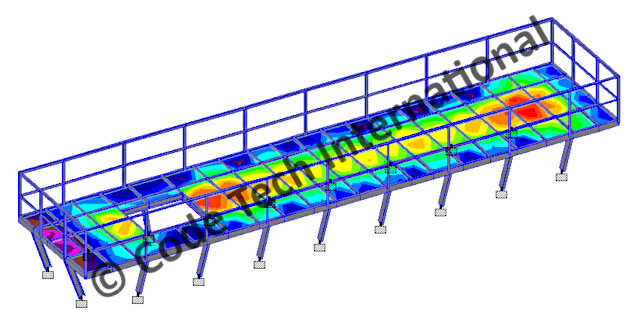

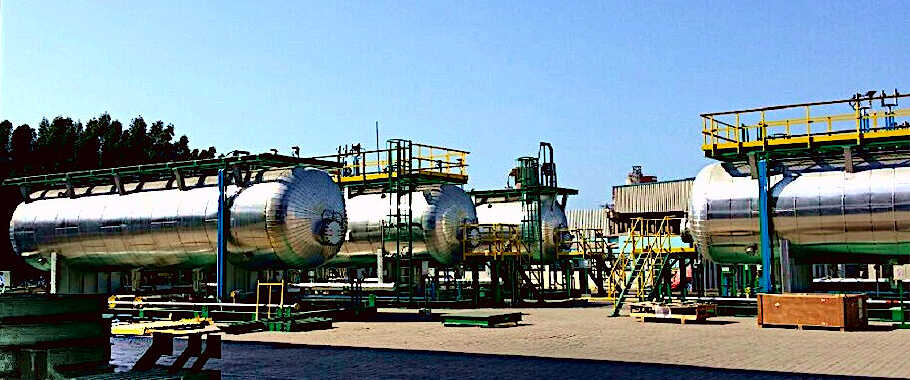

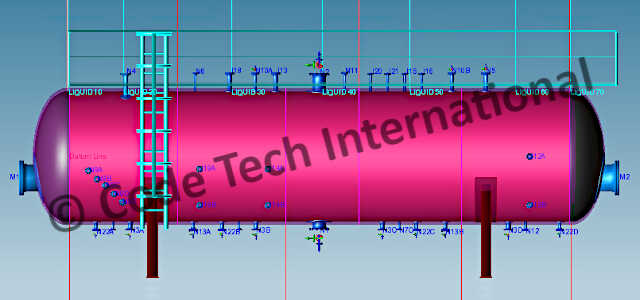

Desalter / Dehydrator Skid Package

Hammar, Rafidiyah and Zubair Oilfields
  • Quantity : 22 units
  • Scope of Work :
    — 3D-modelling of Complete Package
    — Design and Detailing of Vessels as per ASME Section VIII Div. 1
    — Design, Analysis and Detailing of Skid Structure
    — Design and Detailing of Top Platform
    — Foundation Load Calculation for Complete Package
    — Pipe Routing and Piping Isometric Preparation
    — Internal Supports Arrangement
    — Insulation and Fire-proofing Detailing
  • Vessel Dimensions : 3 m dia. x 11.8 m lg.
  • Package Dimensions : L 14.4 m x W 5.4 m x H 6.5 m
  • Capacity : 91 m3
  • MOC : SA 516 Gr. 70N + Alloy 825 Roll-bonded Clad Plates
  • Site : Iraq

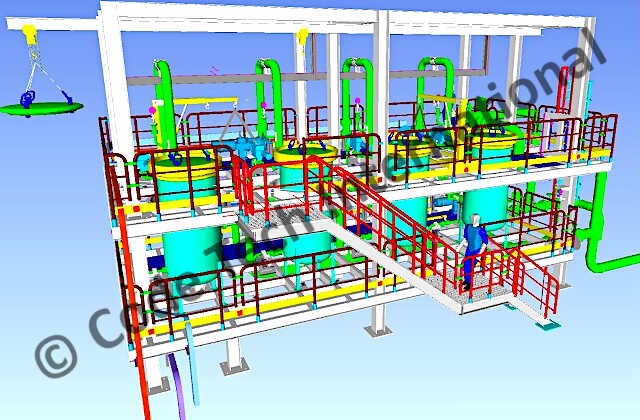

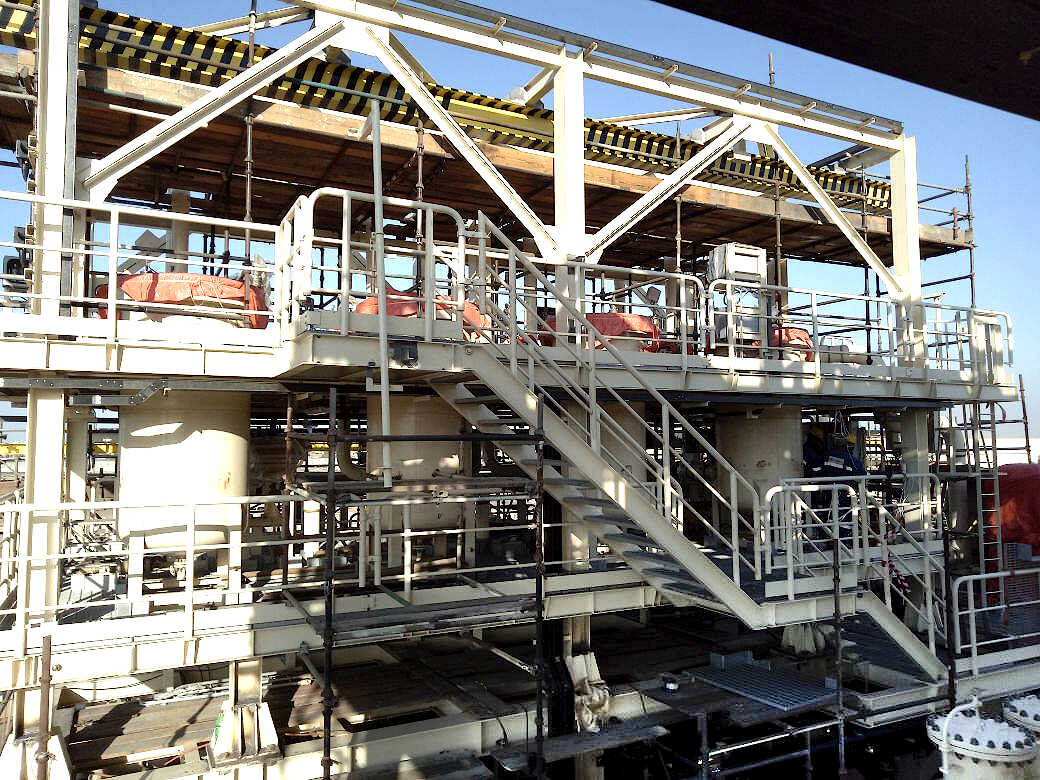

Cartridge Filter Skid

Offshore Skid Package
  • Scope of Work : Complete Package Design, Analysis and Detail Engineering
  • Size : 11.3 m X 8.3 m X 7.54 m ht.
  • Piping MOC : SDSS + GRE
  • Vessels MOC : SDSS 32760
  • Site : Abu Dhabi, U.A.E.

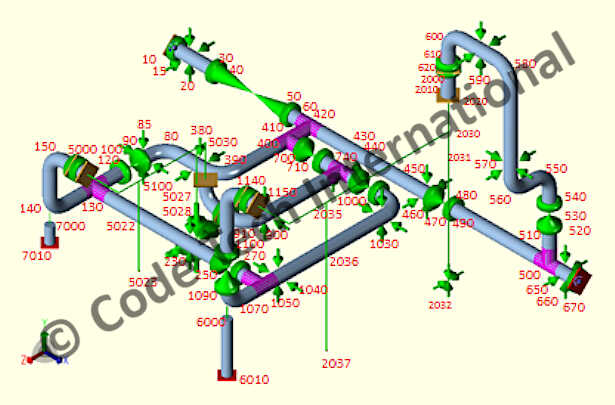

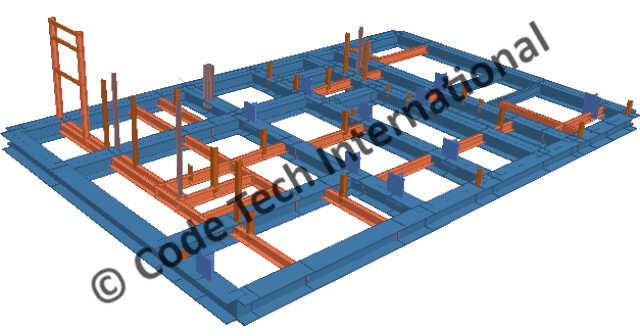

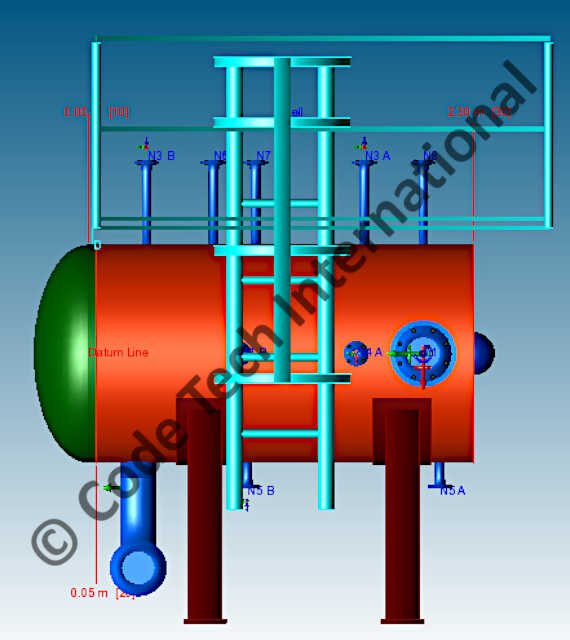

Filter / Coalescer Desalting Package

  • Scope of Work :
    — Design and Detailing of Complete Package
    — 3D-modelling of Skid Structure
    — Design, Analysis and Detailing of Skid Structure
    — Design and Detailing of Top Platform
    — Piping Stress Analysis
    — Pipe Routing and Piping Isometric Preparation
    — Pipe Support Arrangement and Detailing
    — Foundation Load Calculation for Complete Package
    — Lifting Load Calculation
  • Design Code : ASME Sec. VIII Div. 1 + ASME B 31.3
  • Boot Size : OD 610 mm X 3600 mm TL-WL X 10 mm thk.
  • Coalescer Filter Size: ID 1280 mm X 4000 mm TL-WL X 12 mm thk.
  • Cartrdige Filter Size: ID 1280 mm X 2300 mm TL-WL X 12 mm thk.
  • Skid Dimensions: L 8.5 m x W 5.5 m
  • Pressure: 7.7 bar(g)
  • Temperature: 56°C
  • Medium Density: 800 kg/m3
  • Empty Weight: 39230 kg
  • MOC: SA516 Gr. 70
  • Site: Abu Dhabi, U.A.E.
  • Comments : In any skid package design one of our main concerns is the lifting procedure because this is the stage which truly validates the strength of the selected skid structure. Any miscalculation in the COG position or selection of the wrong sling length or shackle size can lead to failure or toppling of the skid.
    We therefore provide complete details for the sling (along with the loads on the sling) as well as details regarding shackle type, spreader beam, position of COG, point of lifting, etc. All of the above are considered in our analysis in order to mitigate the risk of the skid being mishandled.

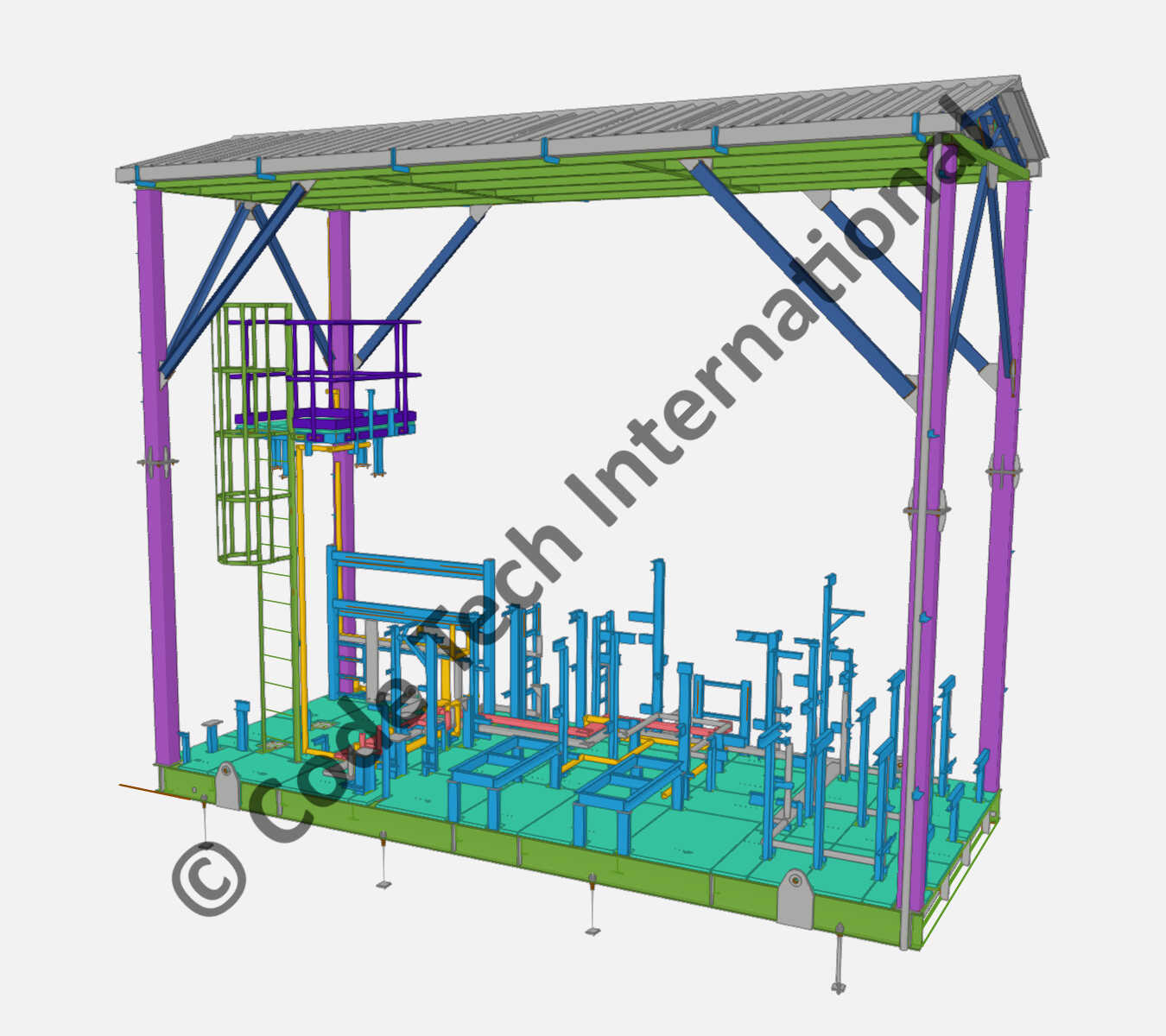

Bulk Chemical Transportable Skid

Complete Package Design
  • Scope of Work : Vessel Design, Piping (incl. 3D-modeling), Skid Structure Analysis
  • Capacity : 11 m3
  • MOC : SS316L
