Storage
Tanks

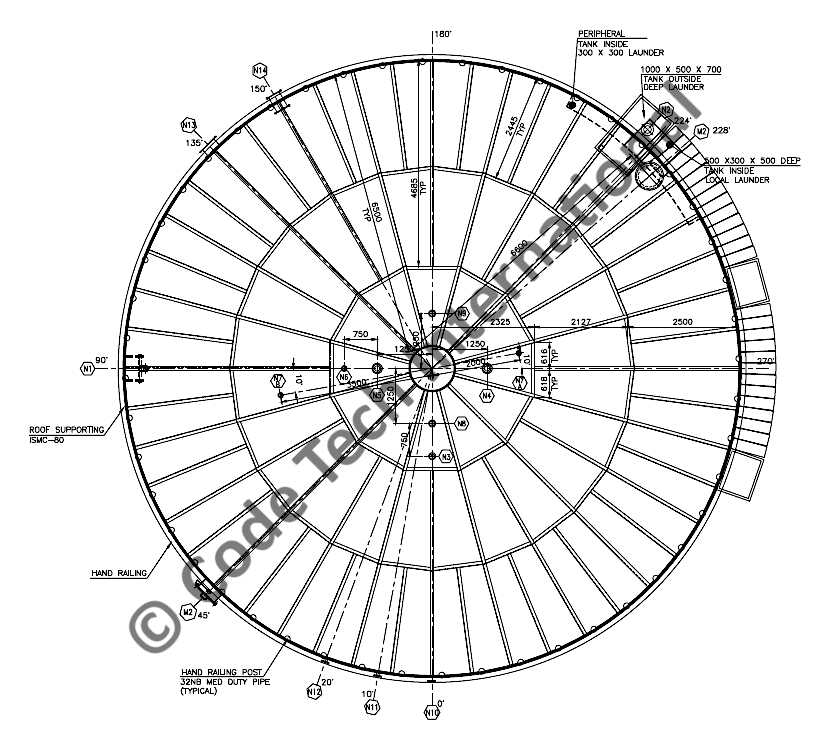

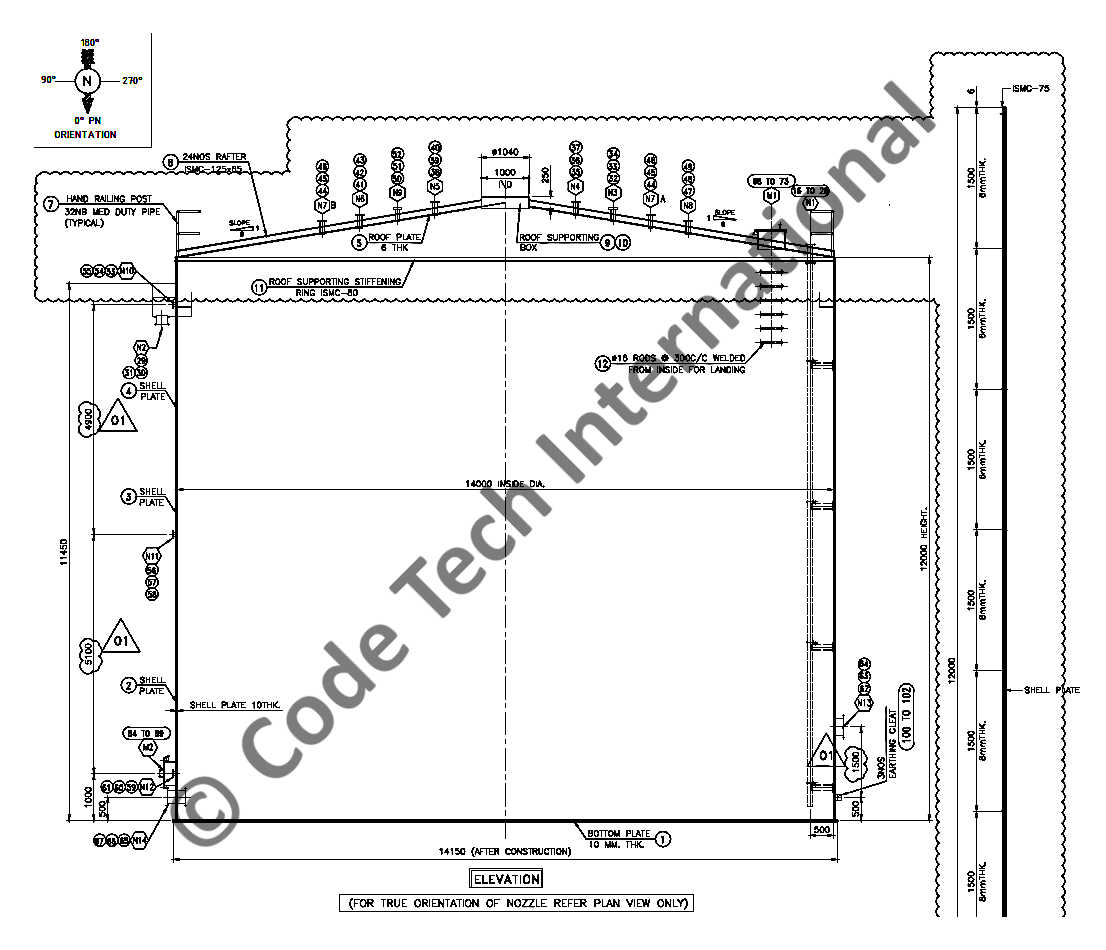

Anaerobic Digester

Fixed Conical Roof Tank
  • Scope of Work : Tank Design and Analysis + Drawing Review and Appraisal
  • Design Code : API 650
  • Size : 14 m ID X 12 m ht.
  • Capacity : 1770 m3
  • Site : Condensate Polishing Unit

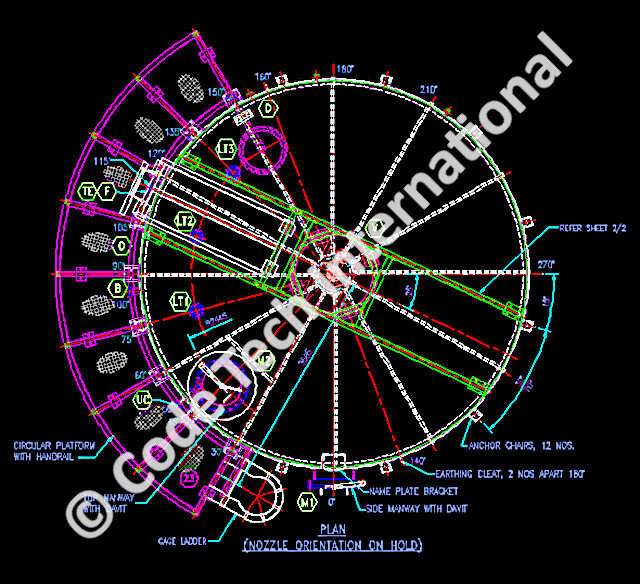

Sulphuric Acid Bulk Storage Tank

98% Concentrated H2SO4
  • Scope of Work : Design, Analysis and Detail Engineering
  • Tank Design Code : API 650
  • Wind Design Code : MS-1553:2002
  • Seismic Design Code : ASCE 7-10
  • Size : ID 6 m X 5.5 m ht.
  • Capacity : 155 m3
  • Density : 1826 kg/m3
  • Pressure : -5 / 10 mBar(g)
  • Temperature : 75°C
  • MOC : SA 516 Gr. 70
  • Comments : Storage Tank designed with additional safety features including a Side-platform to avoid having to step directly onto the conical tank roof and a Silica Gel Breather Assembly at the vent to prevent entry of moisture.

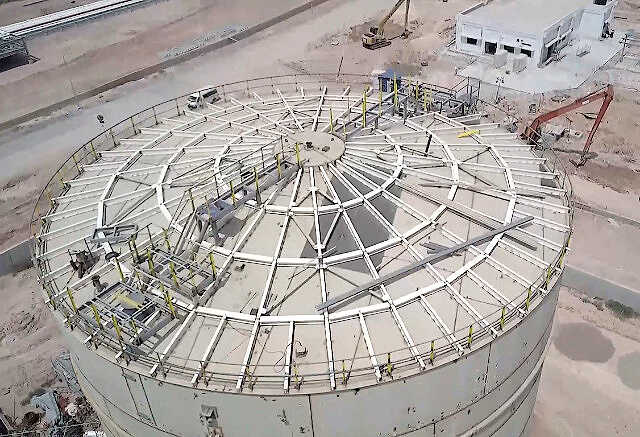

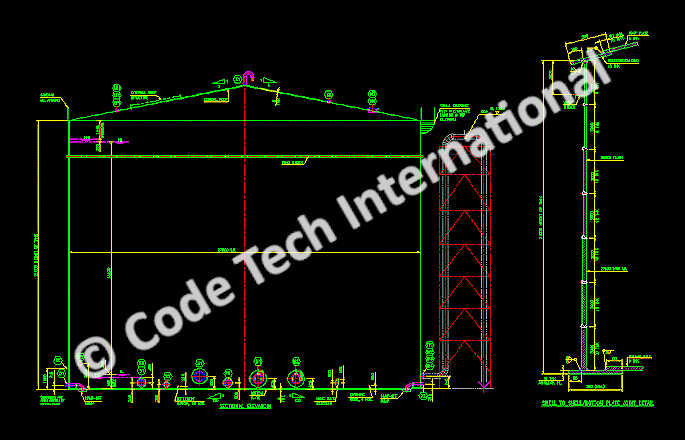

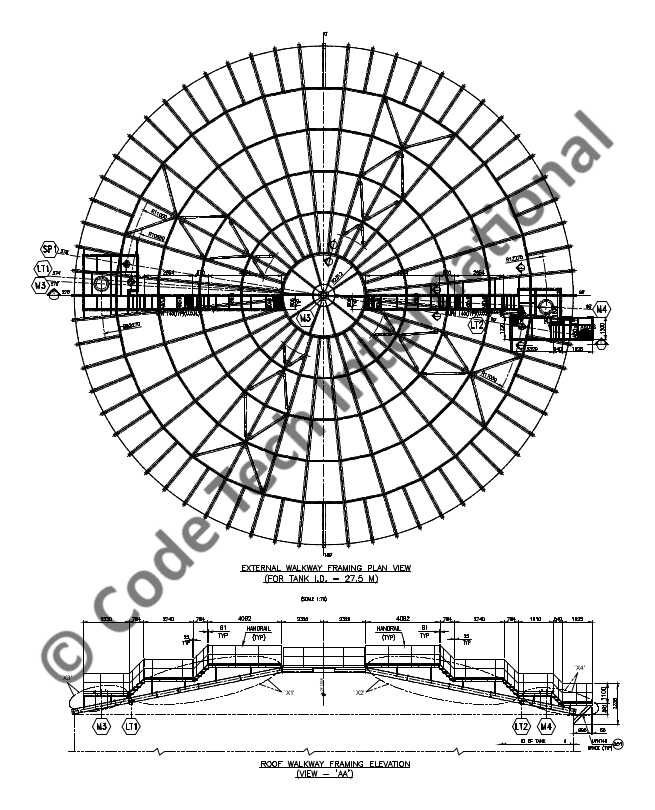

Effluent Tanks

Petronas Rapid Project
  • Scope of Work : Design, Analysis and Detail Engineering of Tanks, Roof and Staircase
  • Tank Design Code : API 650
  • Seismic Design Code : ASCE 7-10
  • Wind Design Code : MS-1553:2002
  • Tank 1 Size : ID 22.5 m X 21 m ht.
  • Tank 2 Size : ID 27.5 m X 21 m ht.
  • Capacity : 7440 / 10716 m3
  • Empty Weight : 216 / 325 MT
  • Fluid Handled : Off-spec Treated Effluent
  • MOC : SA 516 Gr. 70
  • Site : Johor, Malaysia

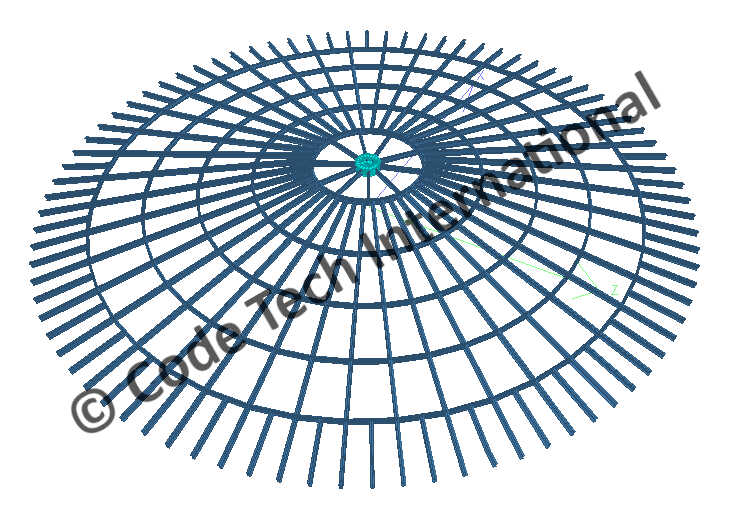

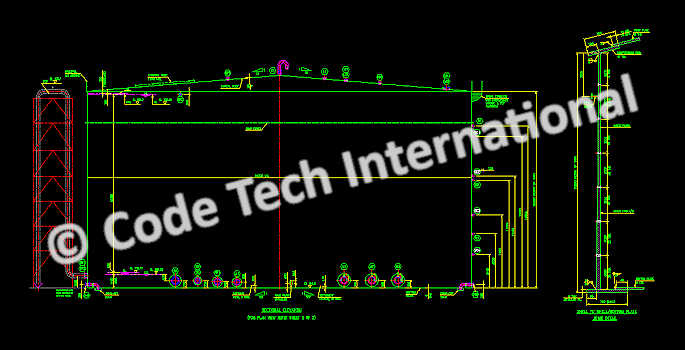

Equalization Tank

Petronas Rapid Project
  • Scope of Work : Design, Analysis and Detail Engineering of Tanks, Roof and Staircase
  • Tank Design Code : API 650
  • Seismic Design Code : ASCE 7-10
  • Wind Design Code : MS-1553:2002
  • Size : 39 m dia. X 20 m ht.
  • Capacity : 21600 m3
  • Pressure : -5 / 10 mbar(g)
  • Empty Weight : 584 MT
  • Fluid Handled : Effluent
  • MOC : SA 516 Gr. 70

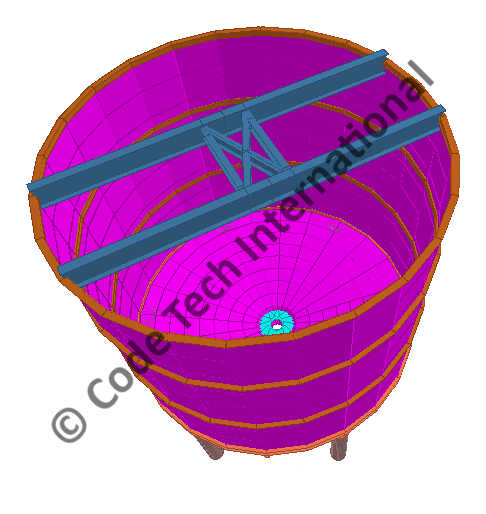

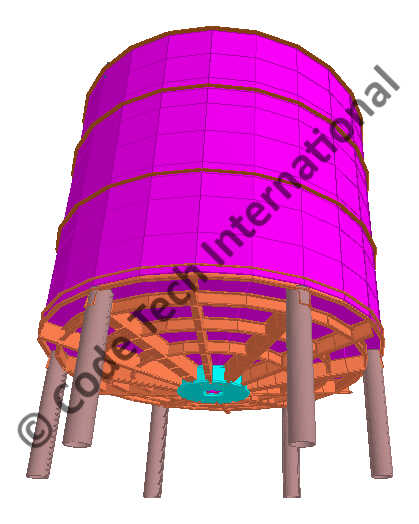

Elevated Sludge Tank

With Conical Bottom
  • Scope of Work : Design + Detail Engineering + Structural Analysis on STAAD.Pro (with manual calculations)
  • Design Code: Good Engineering Practices
  • Size: 6.2 m dia. X 7.602 m ht.
  • Capacity: 140 m3

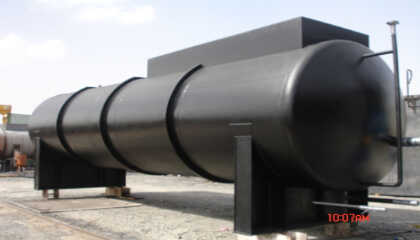

Underground Storage Tanks

Double-wall Tanks Separated by Standoff
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : UL-58 + EN 12285-1
  • Tank Type : Type II / Type D
  • Quantity : 3 units
  • Inner Shell IDs : 1600, 2000, 2500 mm
  • Outer Shell IDs : 1688, 2092, 2592 mm
  • Capacities : 10 m3, 25 m3, 45 m3
  • Empty Weights : 3700 kg, 9000 kg, 13000 kg
  • Operational Weights : 12000 kg, 30000 kg, 52200 kg
  • Fluid : Aviation Turbine Fuel JP8
  • Burial Depth : 3.9 m
  • Site : Abu Dhabi, U.A.E.

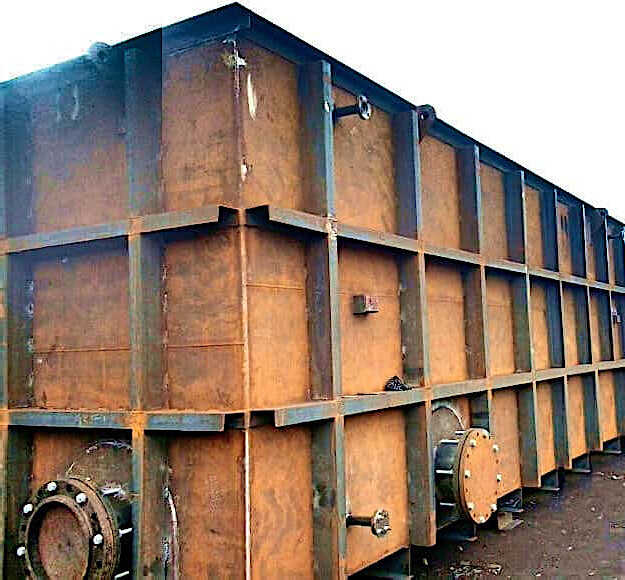

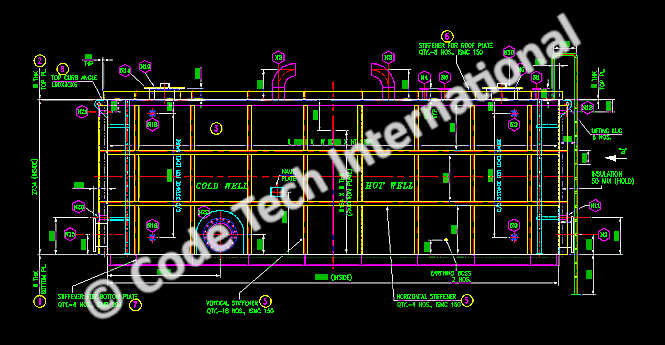

Hot / Cold Well Rectangular Tank

Developed using In-house Design Sheets
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : Roark's Equation + FE Method
  • Design Method : Excel Spreadsheets Developed In-house
  • Size : L 8 m X W 5 m X H 2.7 m
  • Temperature : 65°C
  • Empty Weight : 16000 kg
  • MOC : IS 2062 Gr. B (Indian Standard CS)

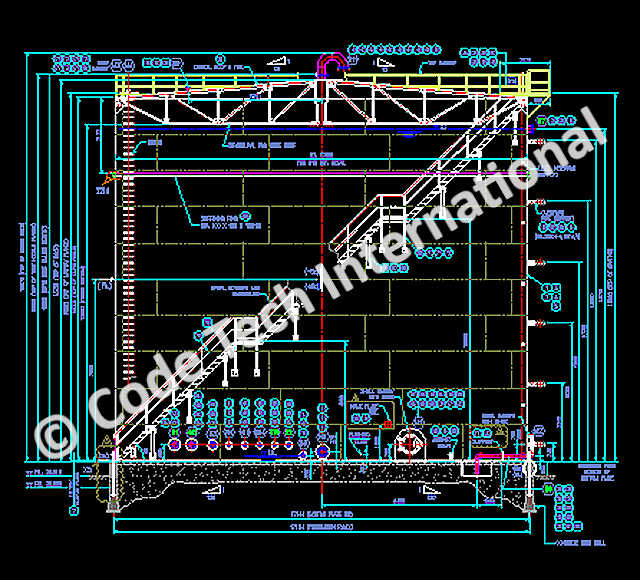

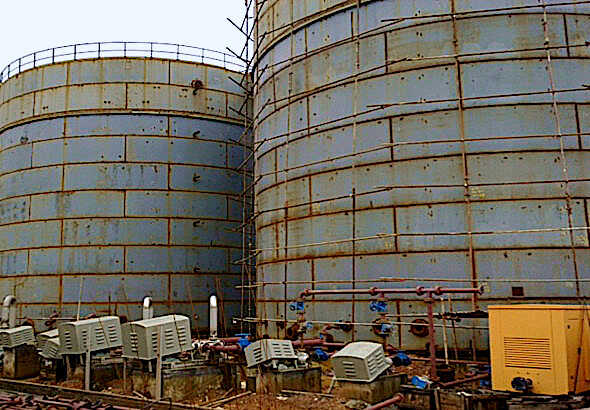

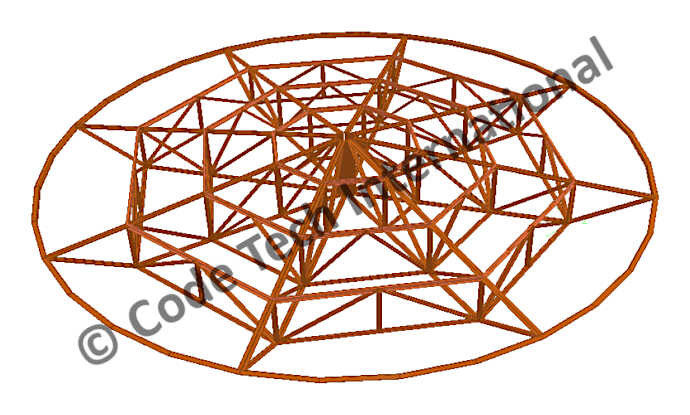

Demineralized Water Storage Tanks

Conical Roof Supported on Structure
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : API 650
  • Size : ID 17 m X 15 m ht.
  • Capacity : 3000 m3
  • Temperature : 120°C
  • Empty Weight : 85000 kg
  • Fluid : Demineralized / Polished Condesate Water
  • MOC : IS 2062 Gr. B
  • Site : ONGC Mangalore Aromatics Complex, India

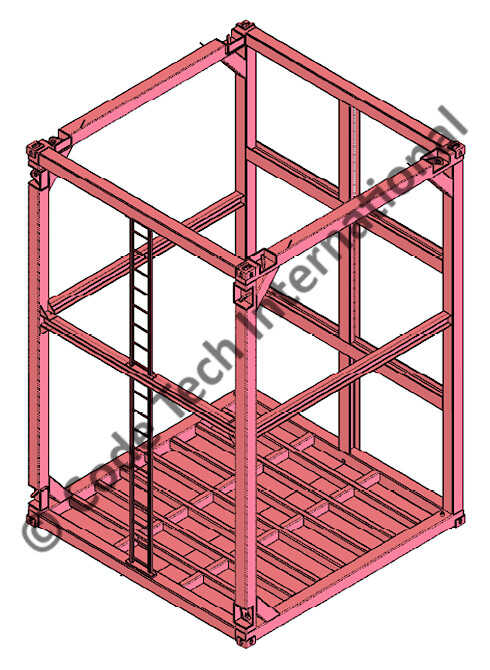

Dual Compartment Atmospheric Tank

Mounted on Mobile Skid
  • Scope of Work : Design, Analysis and Detail Engineering

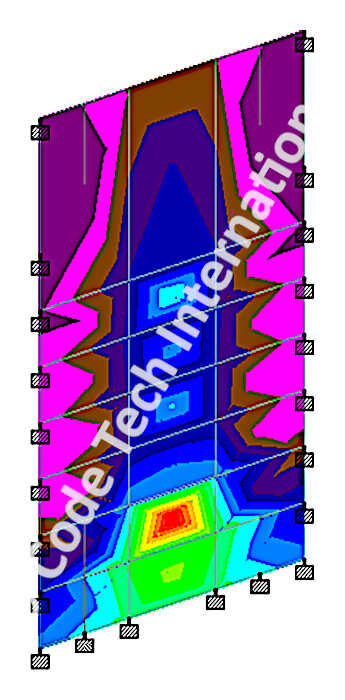

  • STAAD Structural Analysis : Tank Roof, Skid Bottom and Partition Plate
  • Design Code : API 650
  • Capacity : 200 BBL

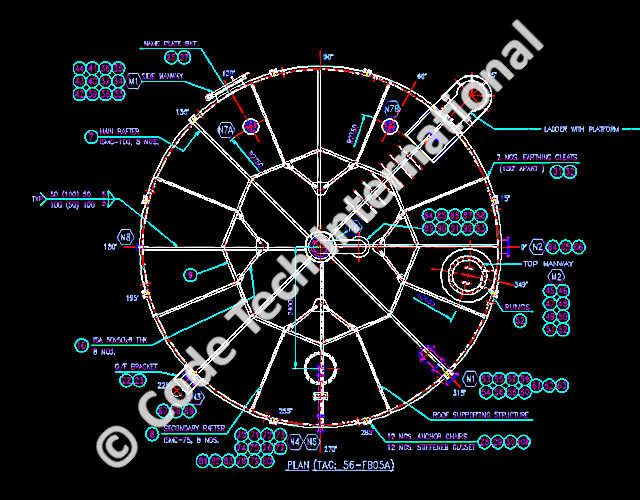

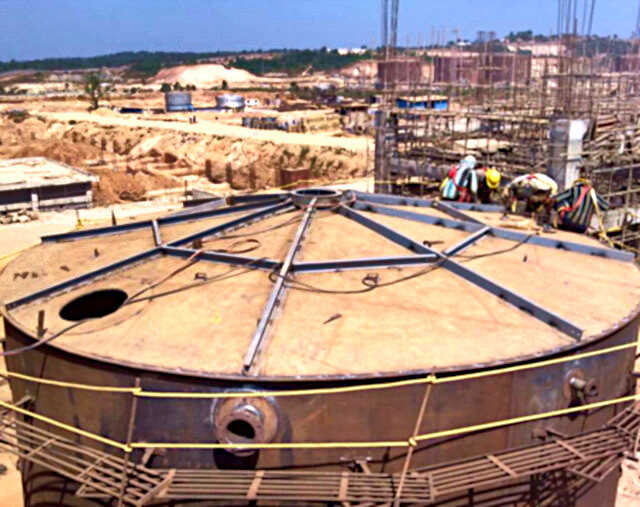

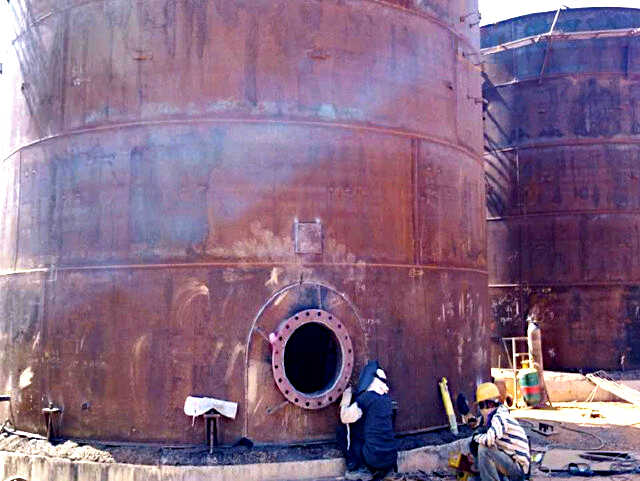

Degassed Water Storage Tank

Conical Roof Supported on Structure
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : API 650
  • Size : ID 7 m X 6.5 m ht.
  • Capacity : 249 m3
  • Empty Weight : 14300 kg
  • Site : ONGC Mangalore Aromatics Complex, India

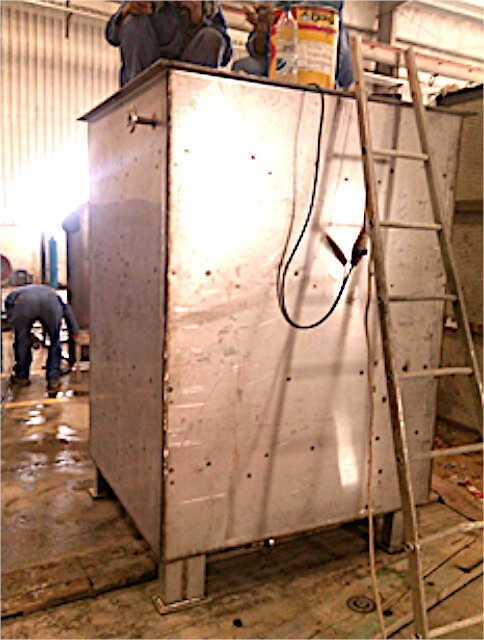

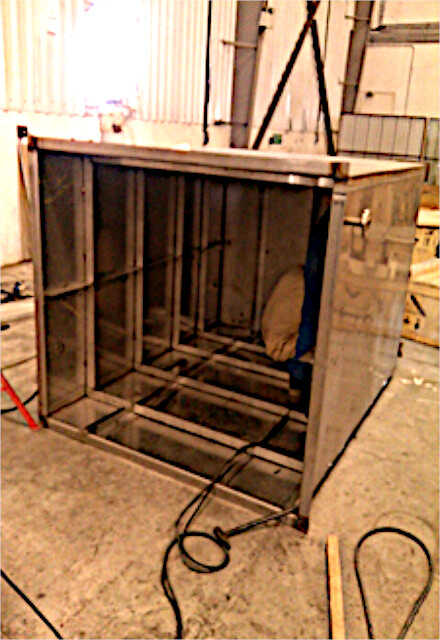

Tote Tanks

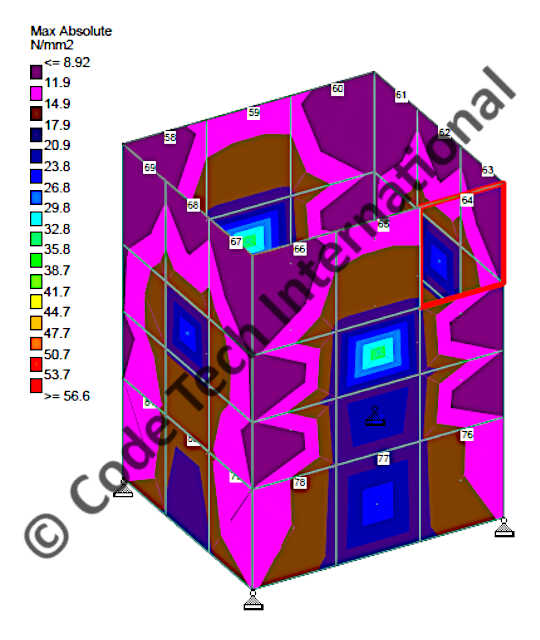

  • Scope of Work : Design + Analysis on STAAD.Pro (with manual calculations) + Fabrication Drawings
  • Design Code: Good Engineering Practices
  • Size: L 1200 X W 1160 X H 1907 mm
  • Installation: Vertical
  • Capacity: 914 Gallon
  • Pressure: Atmospheric / Liquid Filled
  • Temperature: 65°C

Fatty Acid Storage Tanks

Conical Roof Supported on Structure
  • Quantity : 3 units
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : API 650
  • Size : ID 7.5 m X 12.5 m ht.
  • Capacity : 960 m3
  • Pressure : Atmospheric / 24 MMWC
  • Temperature : 80°C

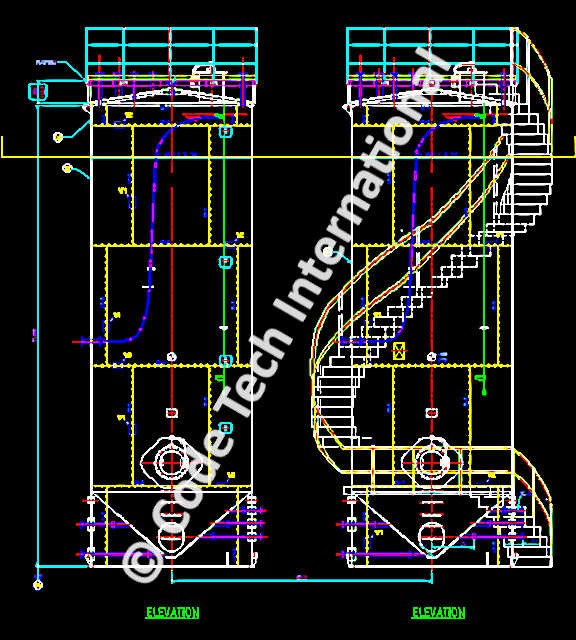

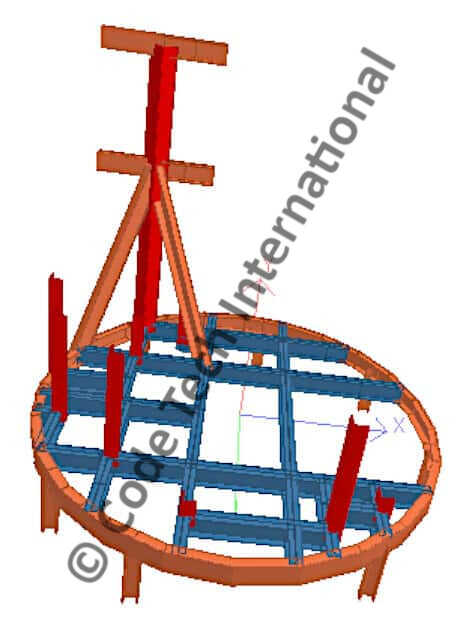

Backwash Clarifier Tanks

Khazzan Central Processing Facility
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : API 650
  • Size : ID 4 m X 9.7 m ht.
  • Capacity : 128 m3
  • Pressure : 17 kPa(g)
  • Temperature : 110°C
  • Site : Oman
