Static
Equipment

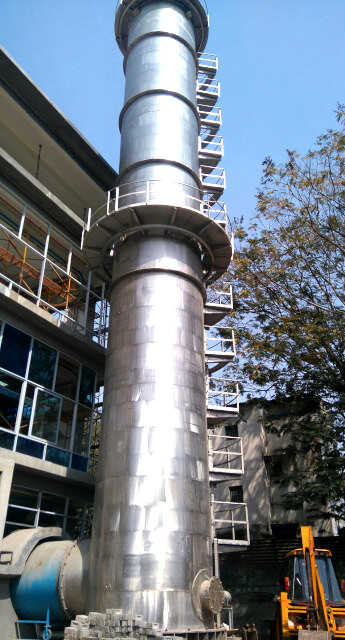

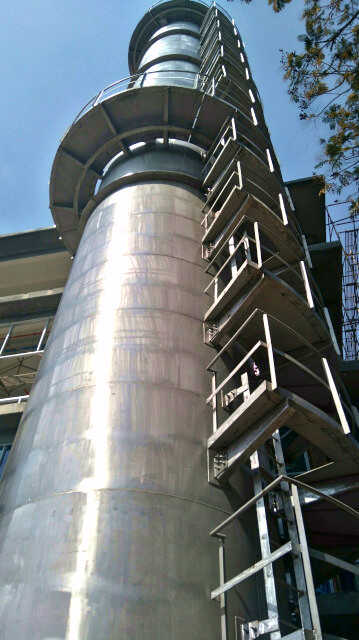

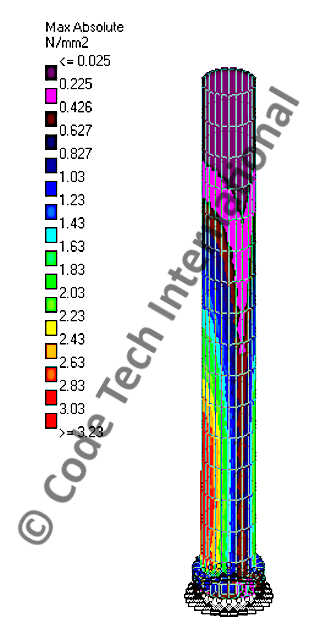

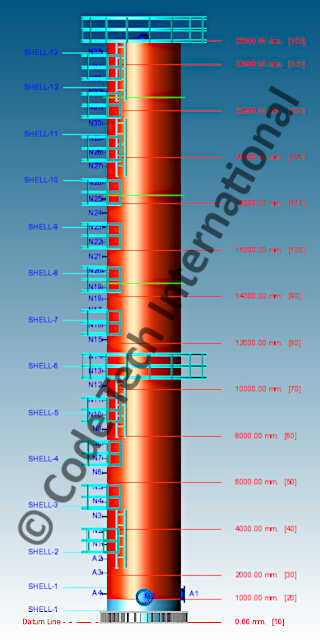

Calibration Tower

  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : ASME Section VIII Div. 1 + API 650
  • Size : ID 3000 mm X 25000 TL-TL
  • Pressure : Atmospheric + Water (Full / Partial Vacuum)
  • Temperature : 65°C
  • Empty Weight : 21000 kg
  • Operating Weight : 201650 kg
  • MOC : SS304

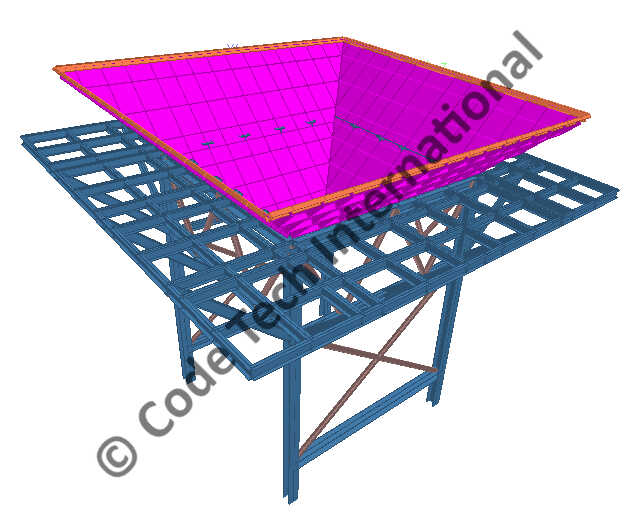

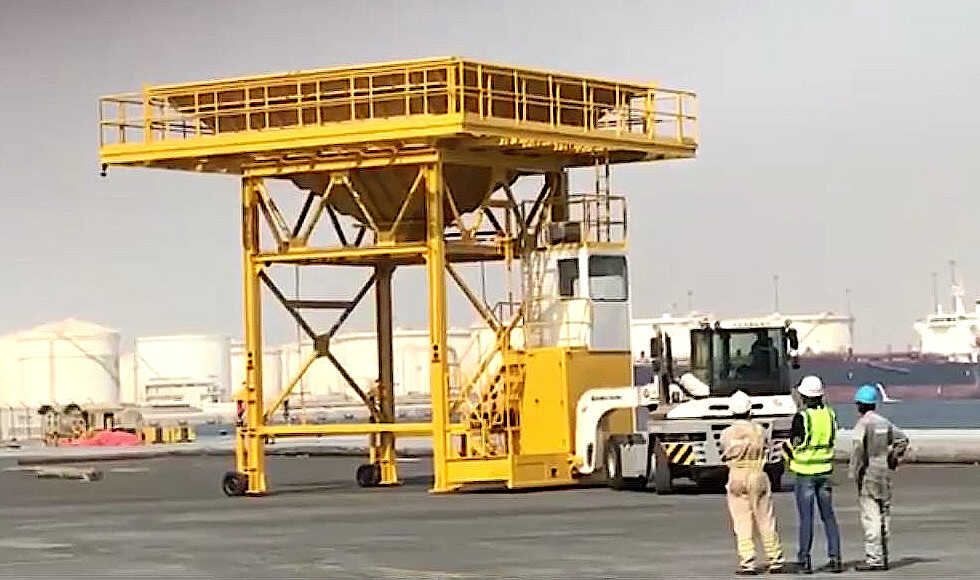

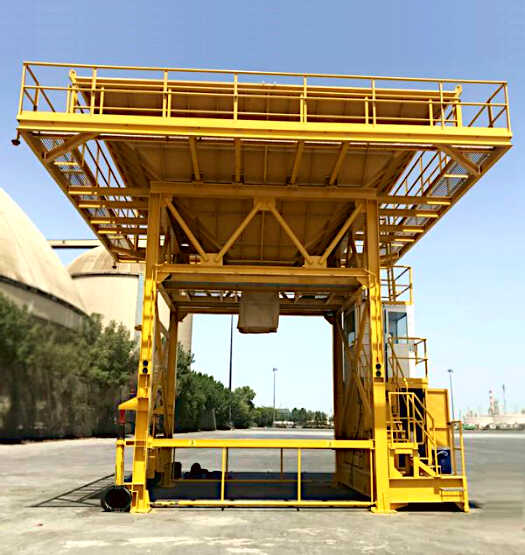

Fully-movable Bulk Handling Hopper

Using a Terminal Tractor with Gooseneck Attachment
  • Scope of Work : Design, Analysis (STAAD.Pro + Manual Calculations) and Detail Engineering
  • Media Load : 85000 kg
  • Hopper Self-weight : 16.24 MT
  • Supporting Structure Self-weight : 8.7 MT
  • Total Metal Weight : 25 MT
  • Capacity : 50 m3
  • Overturning Load on Hopper Assembly (Empty) : 82.75 MT
  • Overturning Load on Hopper Assembly (Full of Media) : 11.95 MT
  • Hopper Dimensions : L 5000 mm X W 5000 mm X H 9350 mm
  • Hopper Vehicle Clearance Opening : W 4500 mm X H 4700 mm
  • Area of Operation : Around Quays and Ports

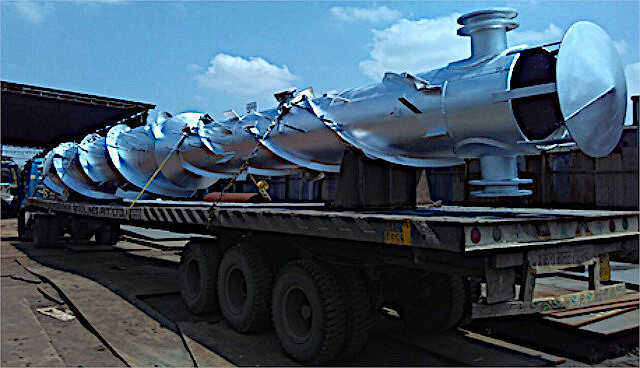

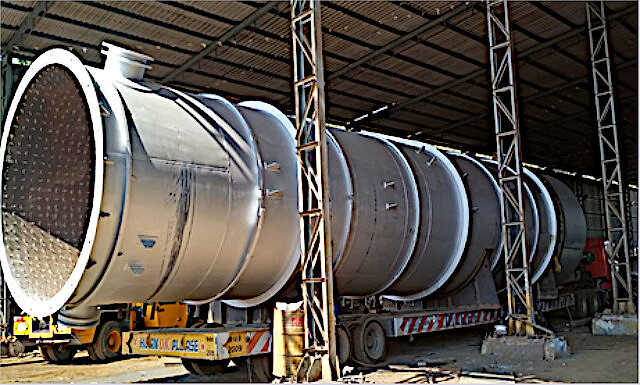

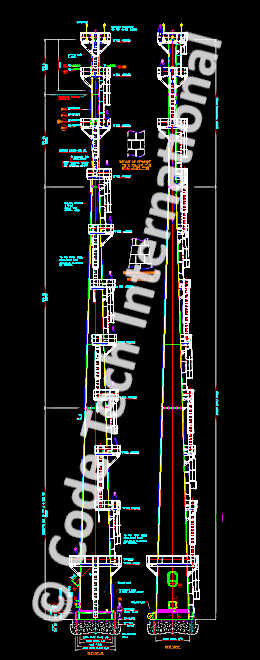

80 Metre Incinerator Stack

Aishwarya Project, IOCL Haldia Refinery
  • Scope of Work : Structural Analysis on STAAD.Pro (with Manual Calculation) + Detail Engineering
  • Design Code : IS 6533-2
  • Wind Design Code : IS 875
  • Seismic Design Code : IS 1893 (Zone 4)
  • Size : 4.5 m bottom-shell ID X 80 m ht.
  • Pressure : 800 mmWC
  • Temperature : 350°C
  • Empty Weight : 185 MT
  • Operating Weight : 275 MT
  • Operating Fluid : Flue Gas
  • MOC : SA 516 Gr. 70N + SS 310S CLAD for Cladded Area
  • Site : West Bengal, India

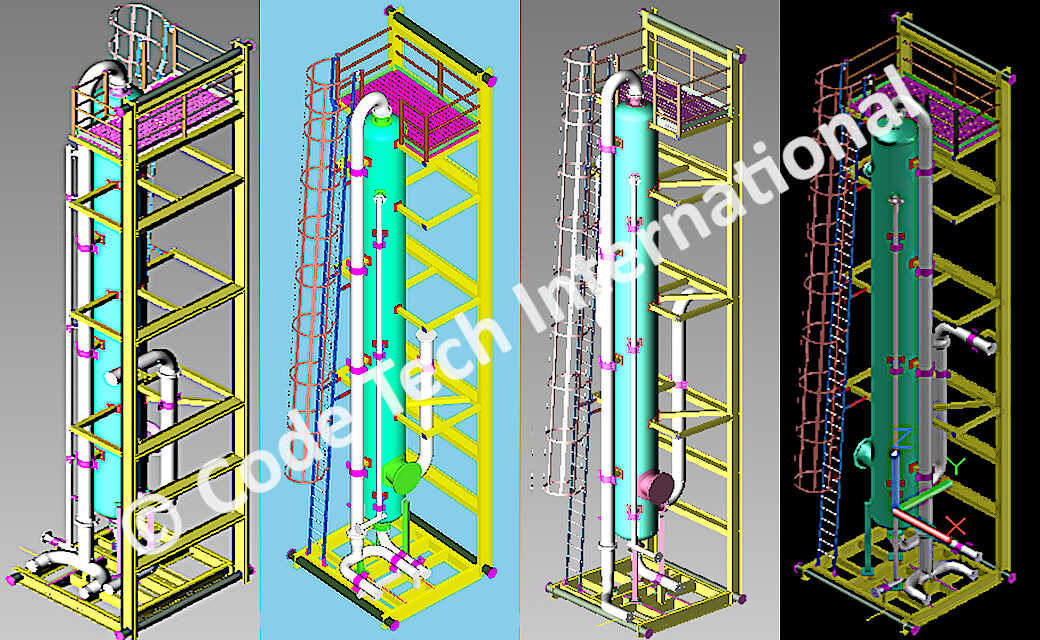

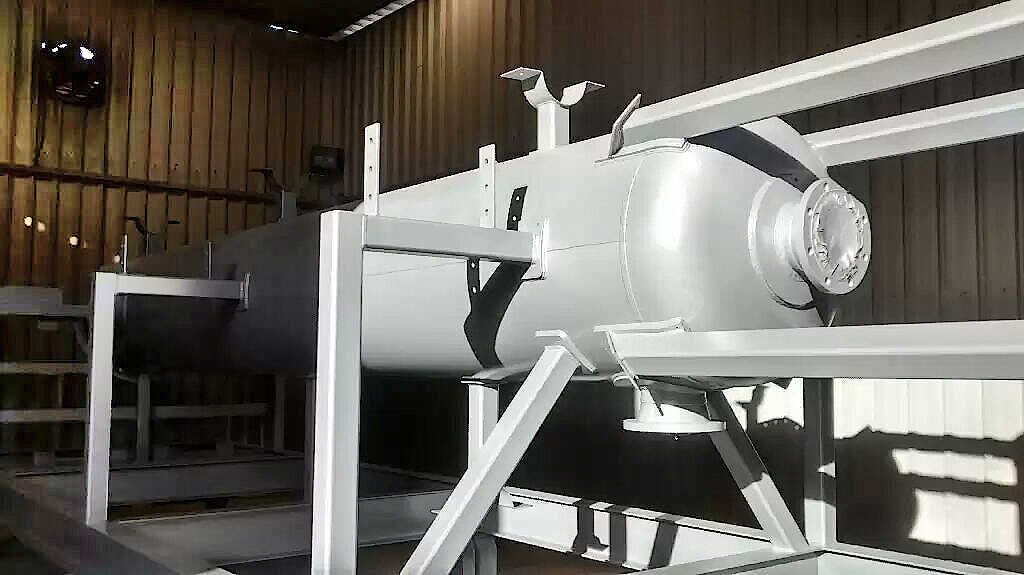

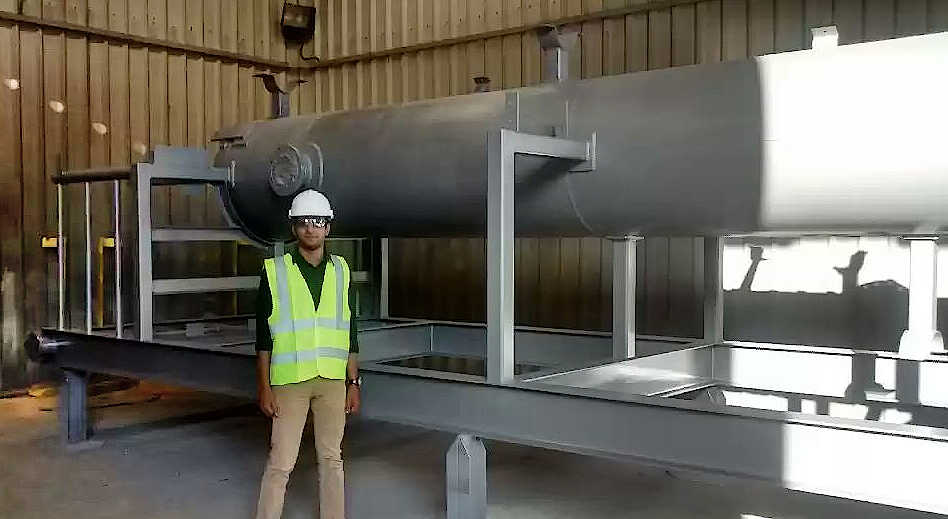

Mud Gas Separators

  • Quantity : 4 units
  • Scope of Work : Complete Package Design, Analysis and Detail Engineering
  • Size : 2.4 m X 2.4 m X 9.4 m ht.
  • MOC : SA 516 Gr. 70 + NACE

Water Softening Package

With Process, Erection and Commissioning
  • Scope of Work : Design, Analysis and Detail Engineering
  • Design Code : ASME Section VII Div. 1
  • Size : ID 1400 mm X 1876 TL-TL
  • Pressure : 5 bar(g)
  • Temperature : 65°C
  • Empty Weight : 1250 kg
  • Vessel MOC : CS + Rubber Lining
  • Hardness Reduction : 500 ppm to 50 ppm
  • Site : Pune, India
