Piping
Systems

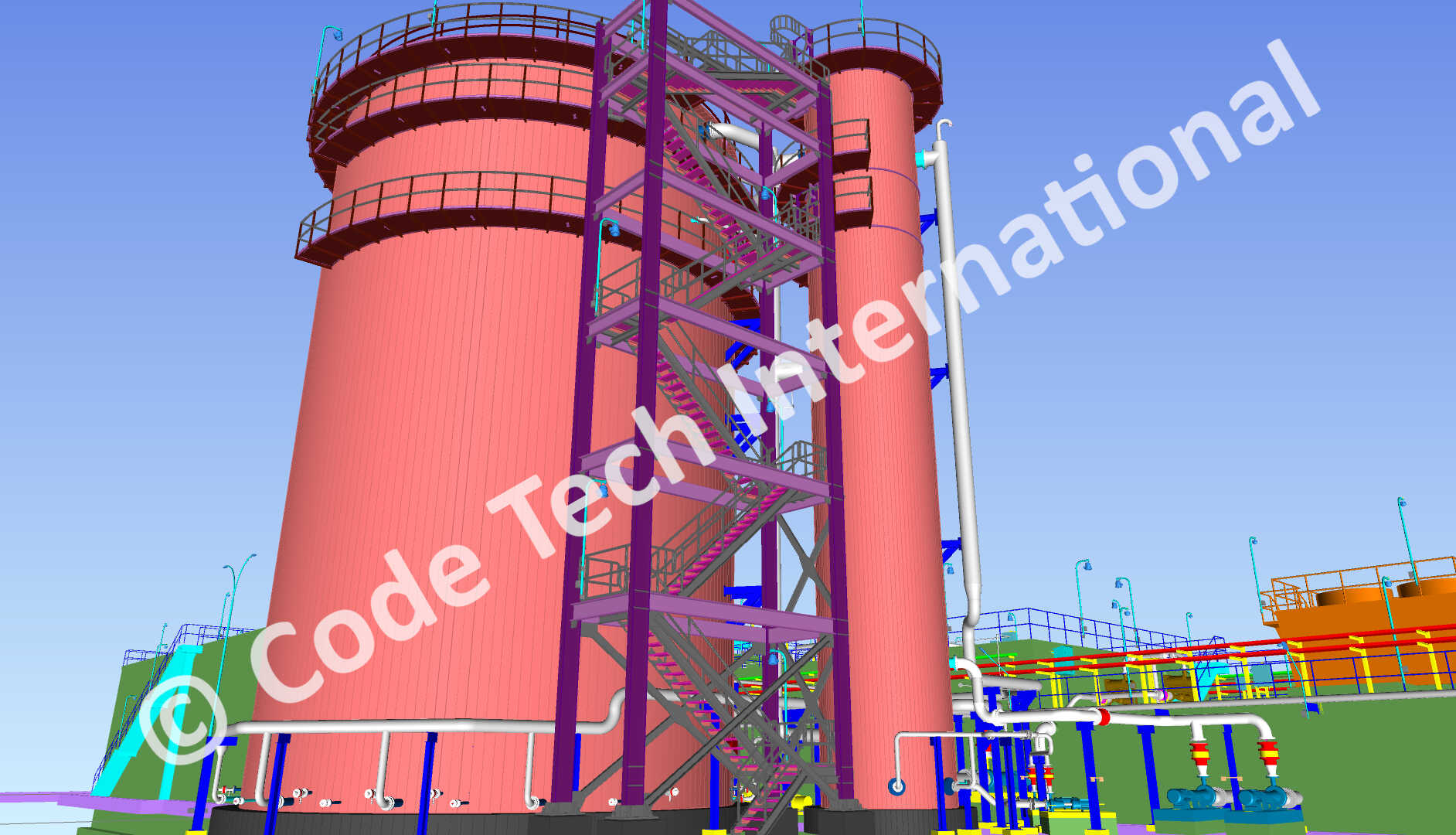

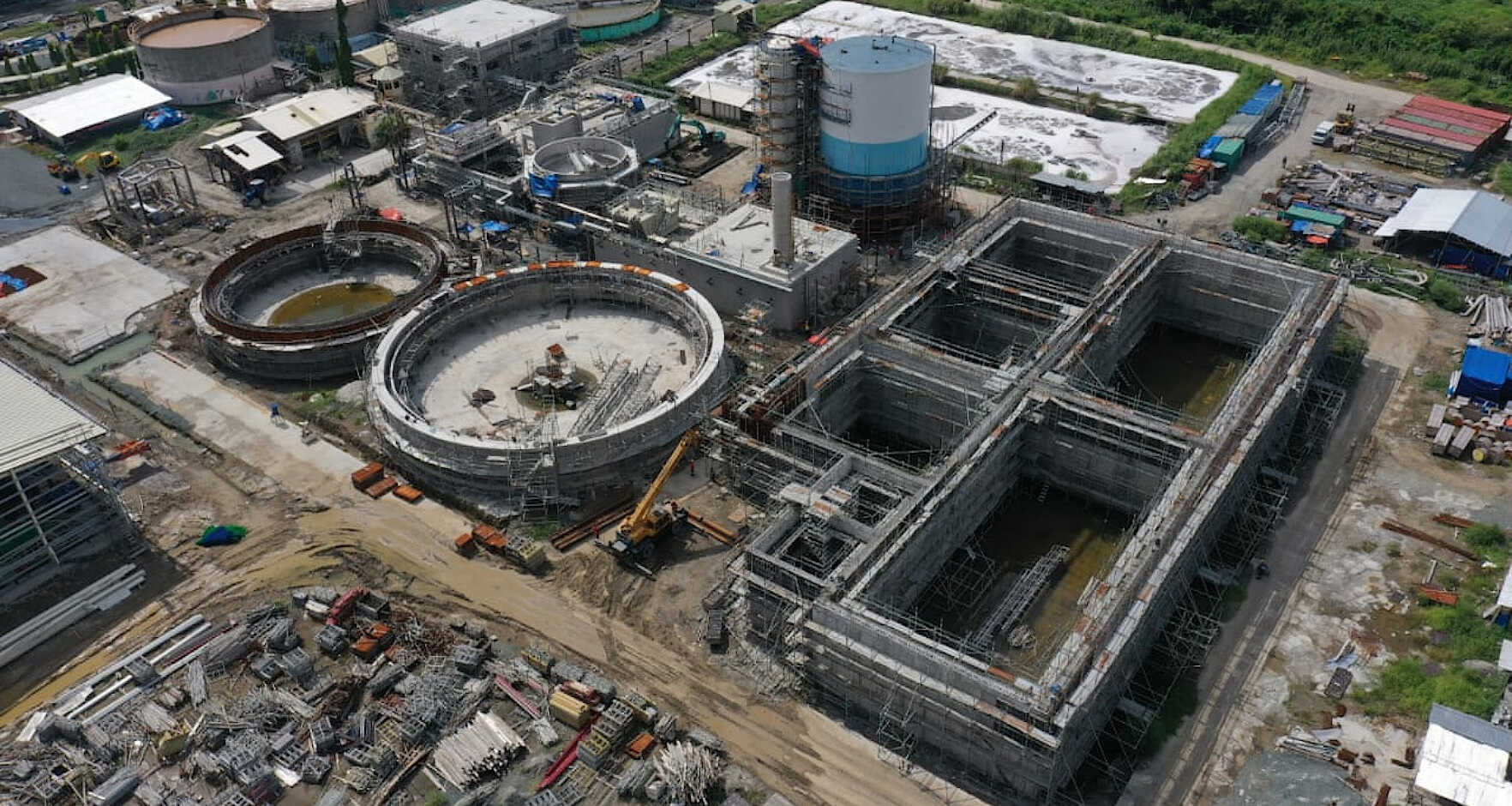

Effluent Treatment Plant

United Pulp and Paper Company
  • Scope of Work :
    — 3D Modeling of Plant
    — Piping Layout / Routing
    — Piping Isometric Detailing
    — Piping Support / Rack Analysis
    — Piping Support / Rack Detail Drawing
    — Civil Work Outline Drawing
    — Detailing of Tank Staircase on Tekla Structures
    — Structural Analysis of Staircase and Pipe Racks on STAAD.Pro
  • Project Area : 100 X 148 m
  • Site : Philippines

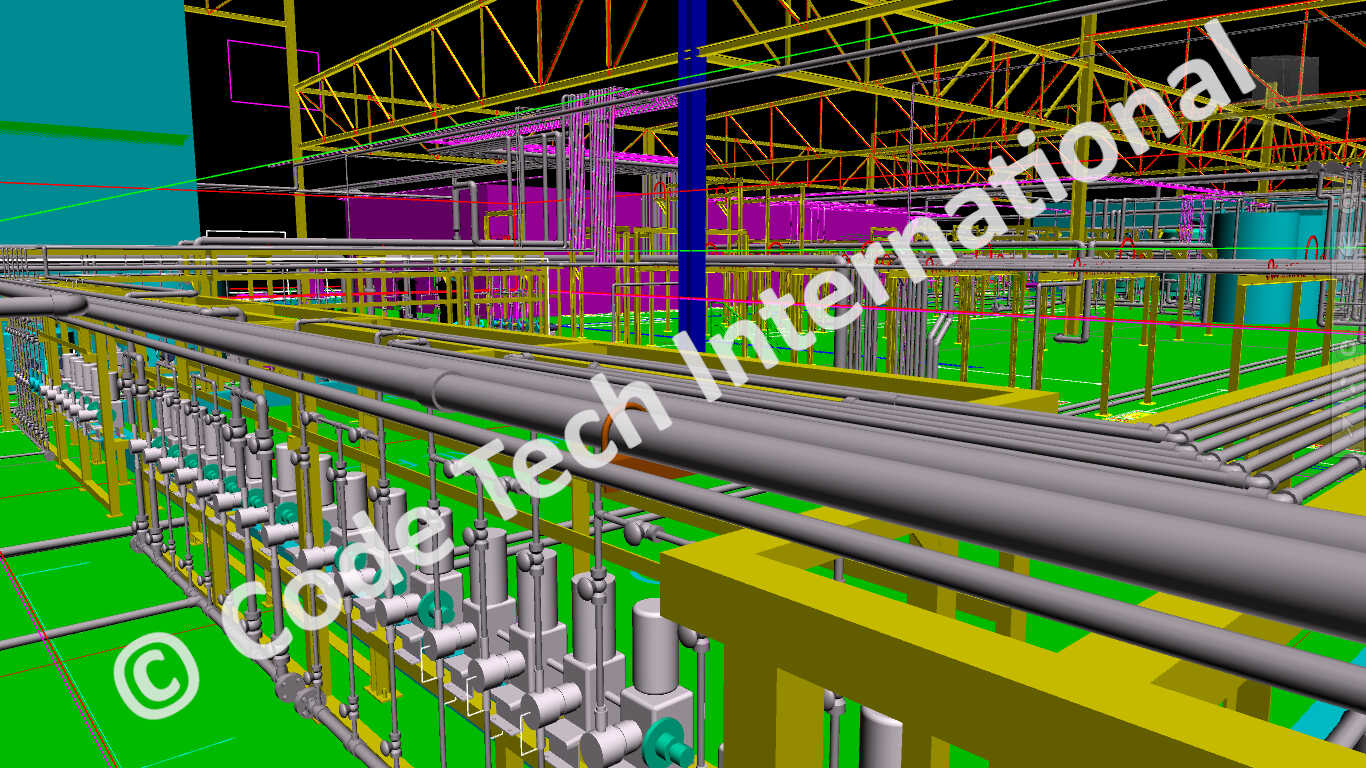

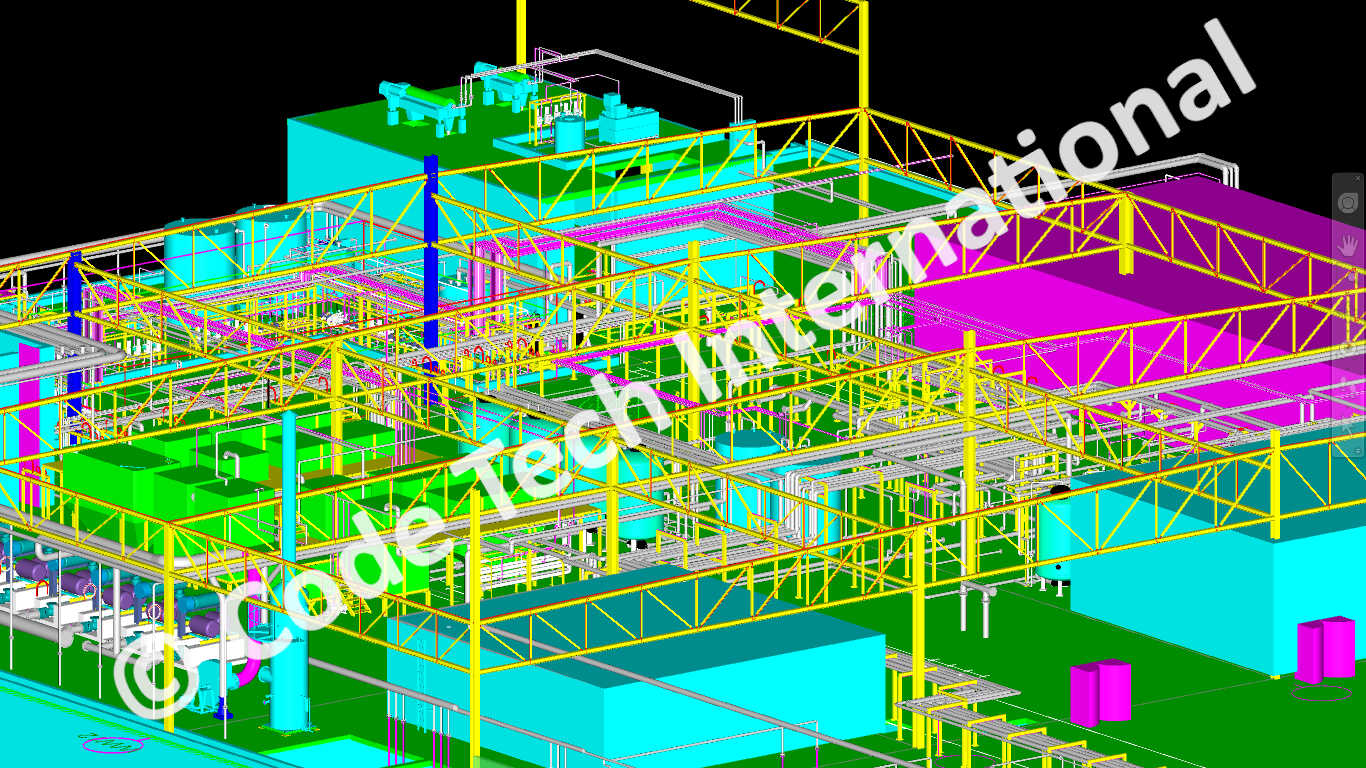

Wastewater Treatment Plant

KIA Motors, KMI Project
  • Scope of Work :
    — 3D Modeling of Plant
    — Piping Layout / Routing
    — Piping Isometric Detailing
    — Piping Support / Rack Analysis
    — Piping Support / Rack Detail Drawing
    — Civil Work Outline Drawing
  • Pressure : 14 bar(g)
  • MOC : CS + SS + PVC / FRP
  • Project Area : 113.5 X 723 m
    (Underground, Above-ground and Mezzanine Floor Area)
  • Site : India

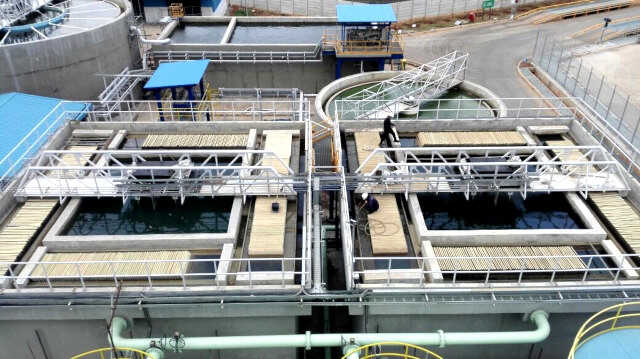

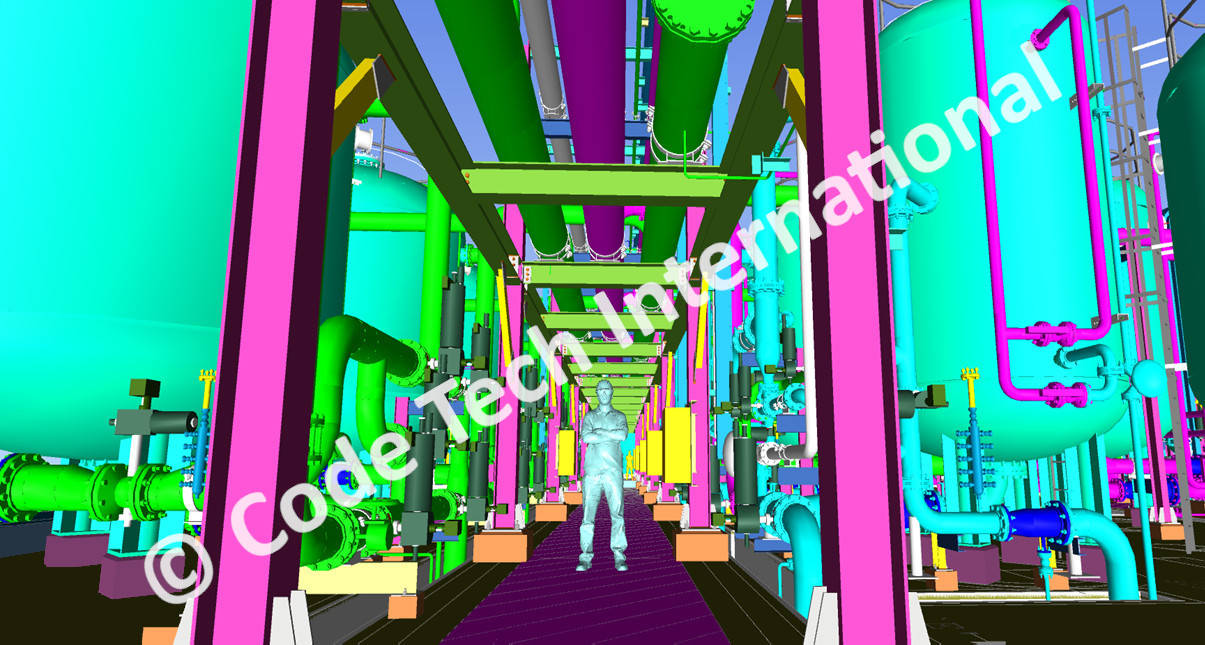

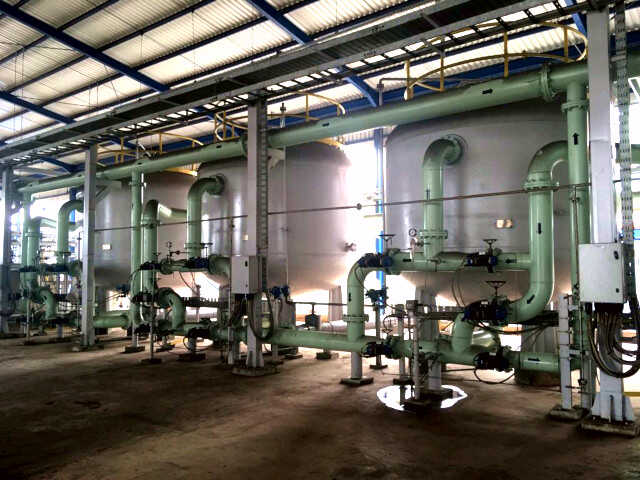

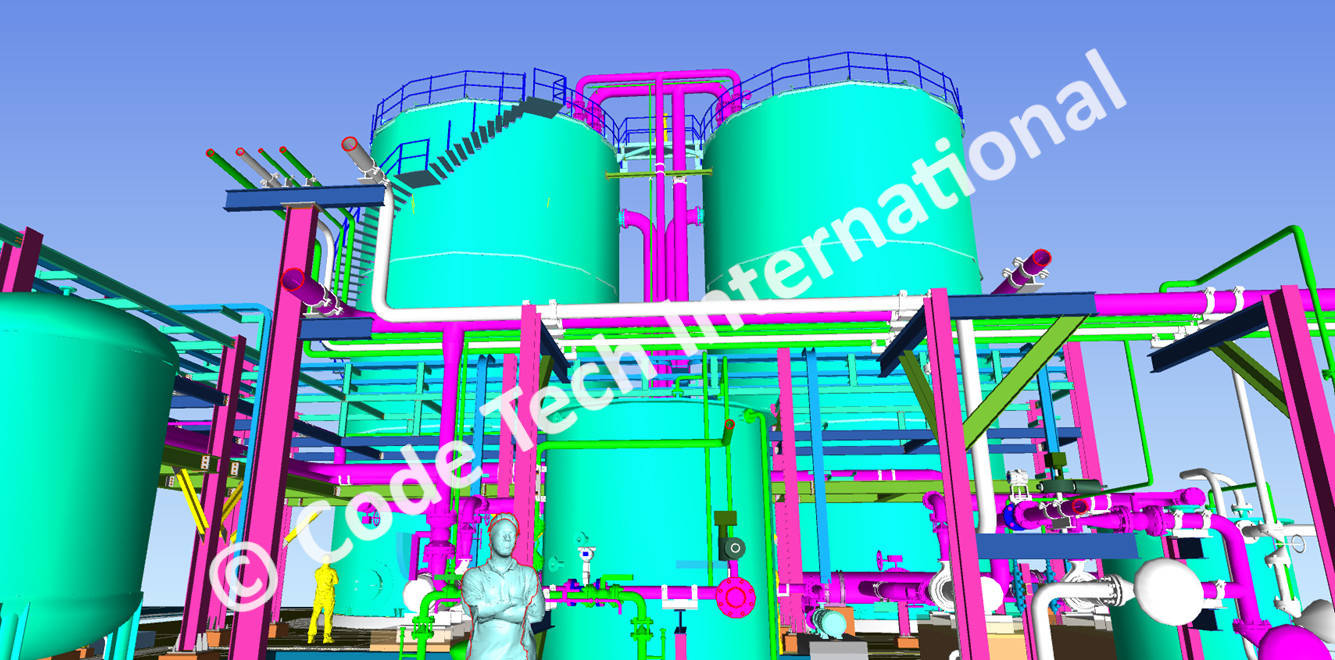

Raw Water Treatment Plant

  • DM Water Flow Rate : 45 m3/hr
  • Raw Water Flow Rate : 200 m3/hr
  • MOC : CS + SS + PVC/FRP
  • Site : Cikarang, Indonesia

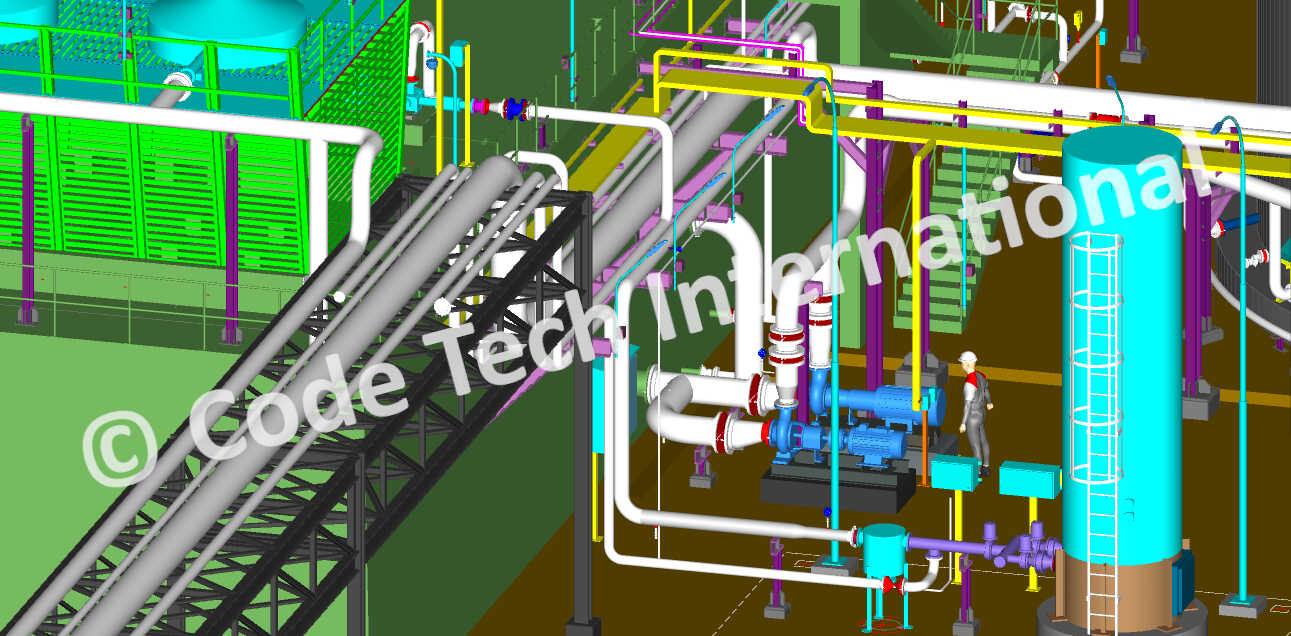

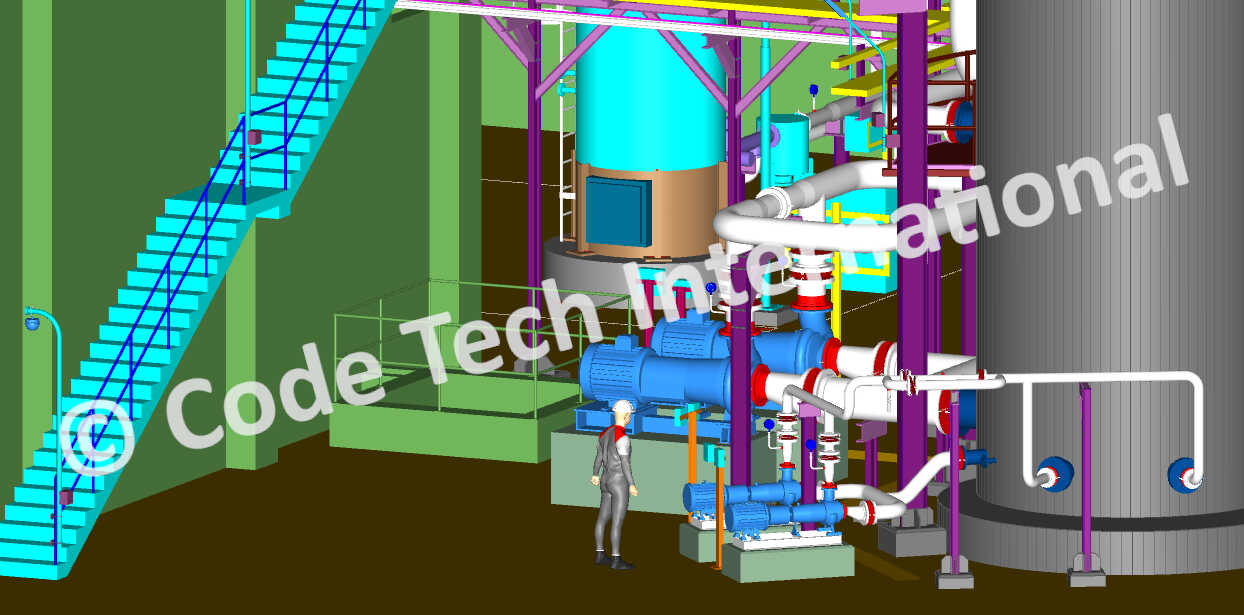

Anaerobic Treatment
& Associated Failities

  • Scope of Work :
    — 3D Modeling of Plant
    — Piping Layout / Routing
    — Piping Isometric Detailing
    — Piping Support / Rack Analysis
    — Piping Support / Rack Detail Drawing
    — Civil Work Outline Drawing
    — Detailing of Tank Staircase on Tekla Structures
    — Structural Analysis of Staircase and Pipe Racks on STAAD.Pro
  • Project Area : 74 X 35 m

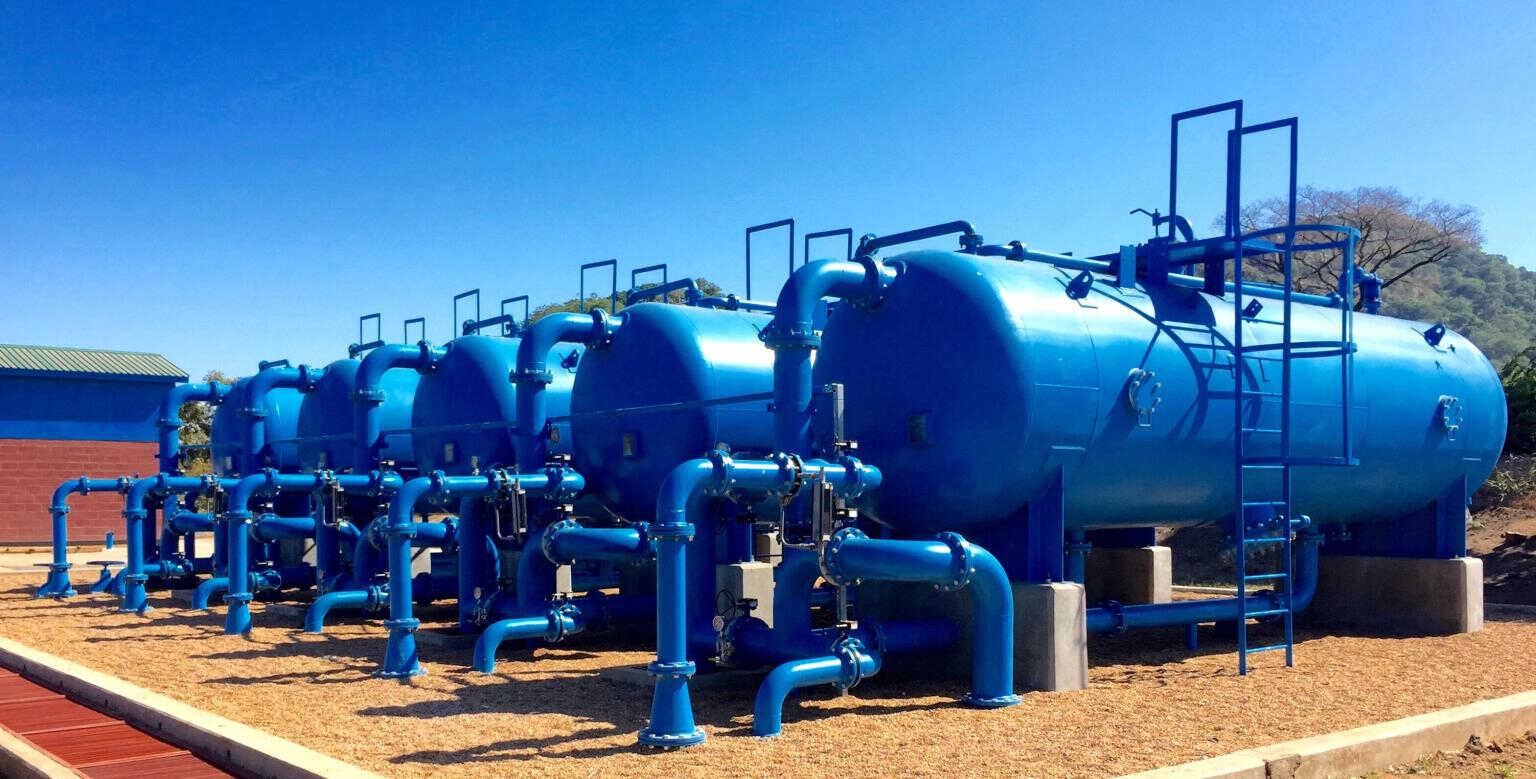

Pressure Sand Water Filtration Package

Complete Package Design
  • Scope of Work :
    — 3D-modeling on CADWorx
    — Pressure Sand Filter Design as per ASME Sec. VIII Div. 1
    — Internal Design and Detail Engineering of Vessels
    — Piping Layout and Routing
    — Piping Isometric Drawings
    — Piping Support Design and Detailing
    — Civil Foundation GA Drawings
    — Ladder and Platform
    — Preparation of Valve Schedule and Valve Table
  • Capacity : 650 m3/hr
    (Overhead piping taken underground at later stage on client's decision)
  • Site : Malawi, Africa

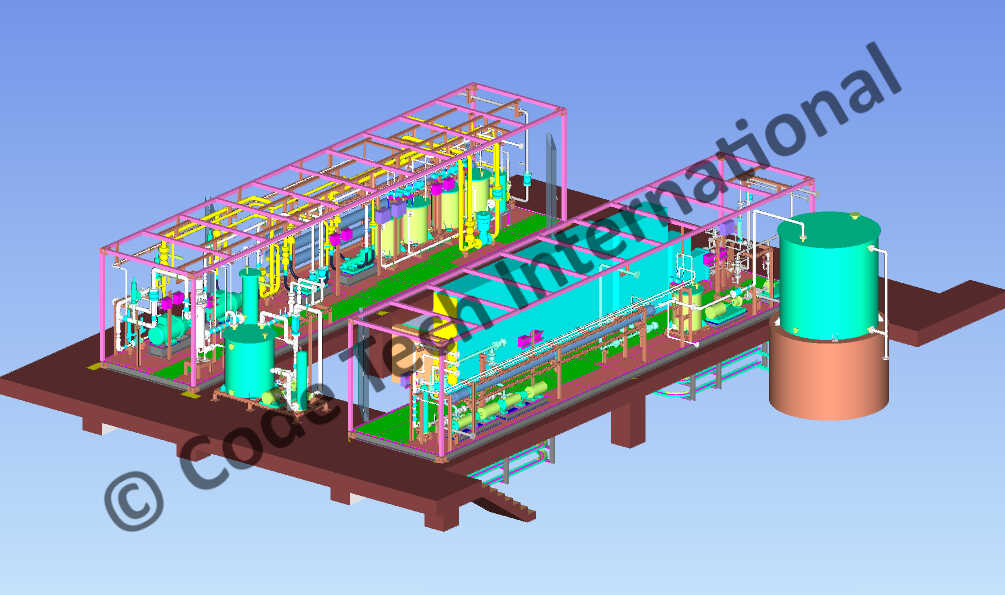

Containerized Water Treatment Plant

  • Scope of Work : Vessel Design, Piping (incl. 3D-modeling), Skid Structure Analysis
  • Site : Kuwait

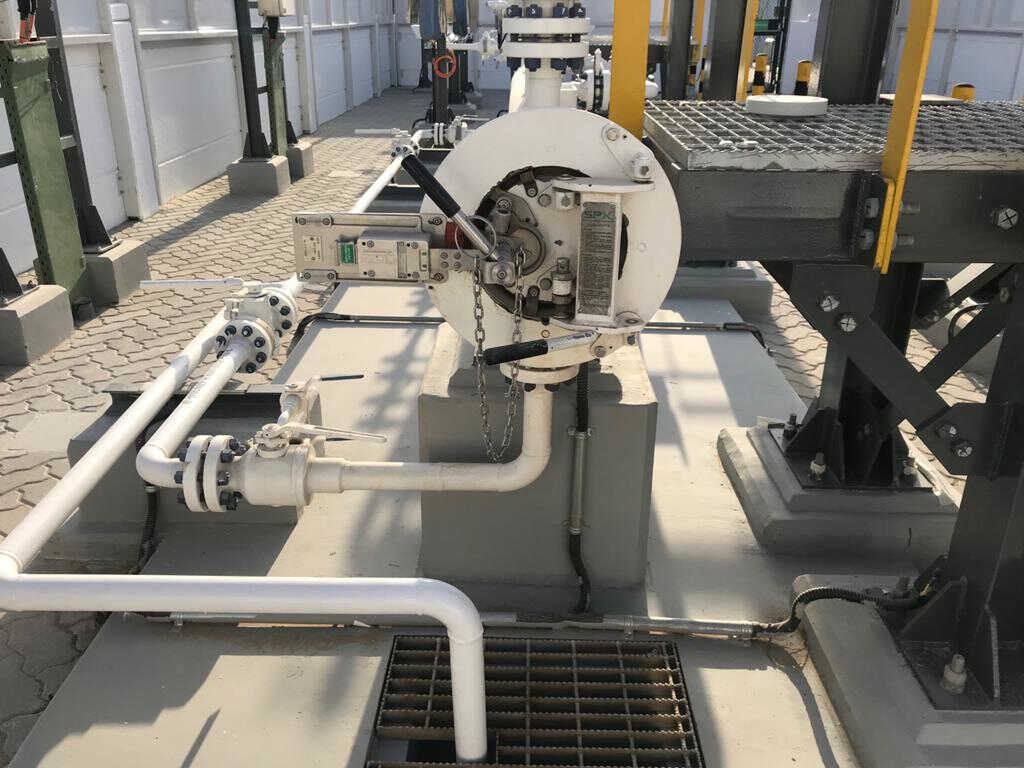

Pig Launcher & Receiver

HP Connection to NGV Filling Stations, GASCO
  • Scope of Work : Design and Detail Engineering
  • Design Code : ASME B31.8 + ASME Sec. VIII Div. 1
  • Critical Rating : 1
  • Critical Rating : 0.3
  • Design Life : 40 years
  • Int. Design Pressure : 63.5 bar(g)
  • Int. Design Temperature : 100°C
  • Service : Sour Service
  • Fluid : Dry Natural Gas
  • Major / Minor Barrel MOC : API 5L X52 PSL2
  • End Client : GASCO
  • Site : Abu Dhabi, U.A.E. (Al-Faqaa)
