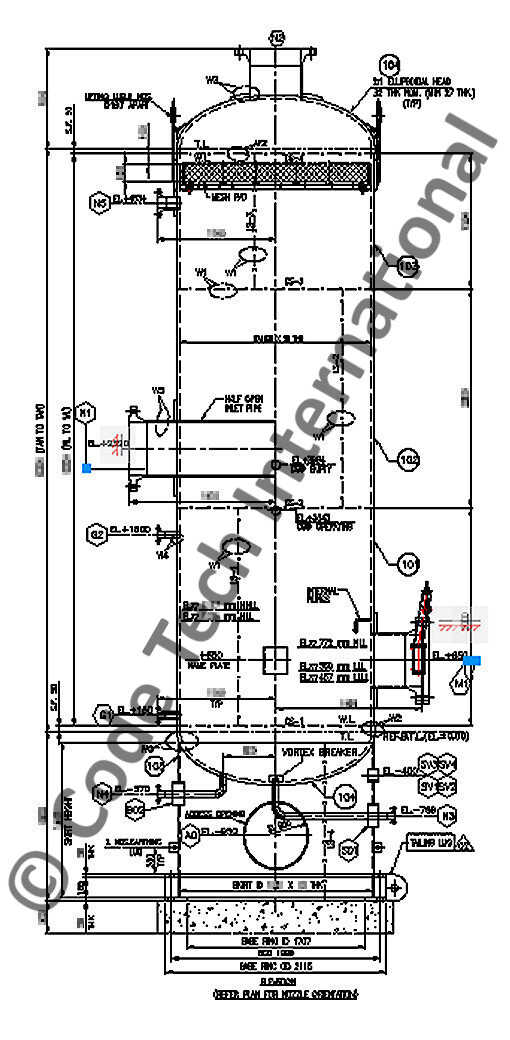

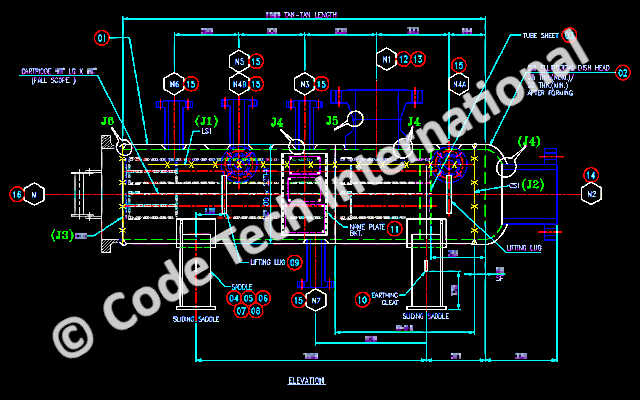

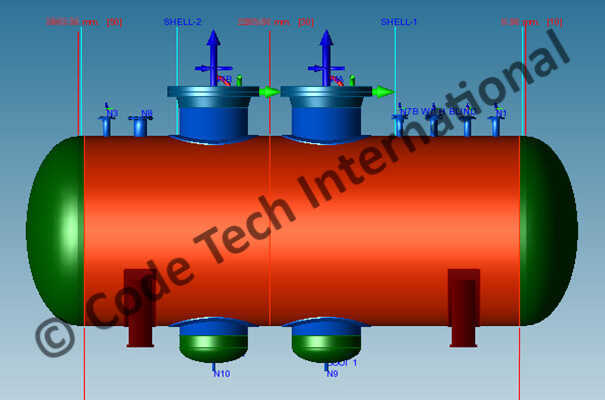

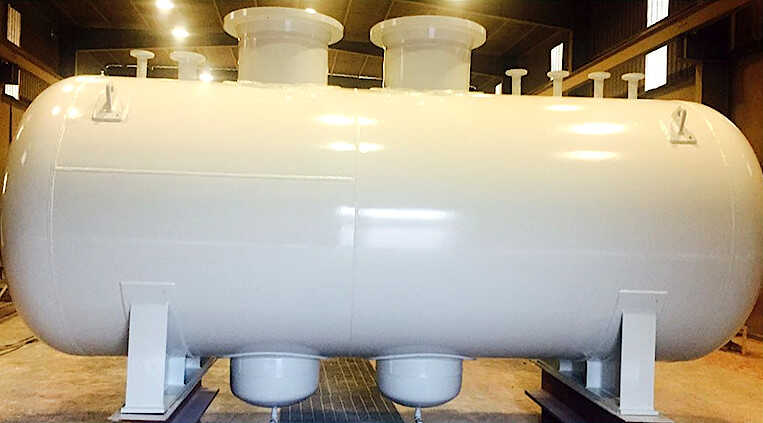

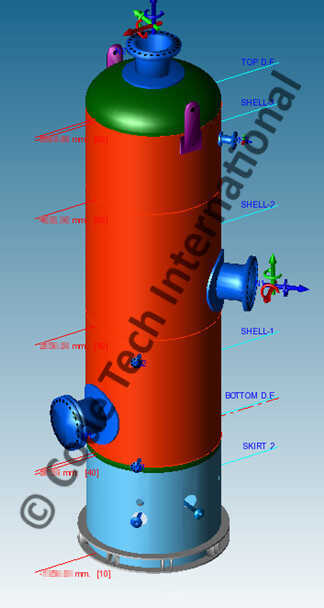

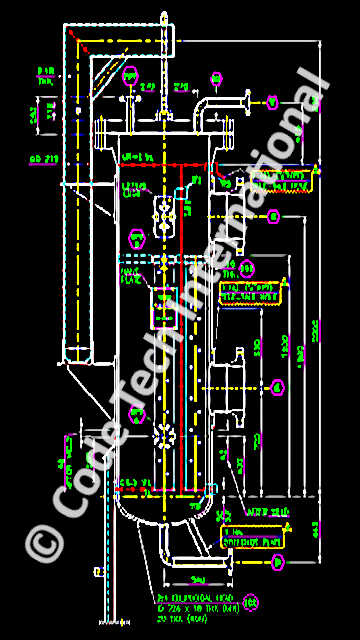

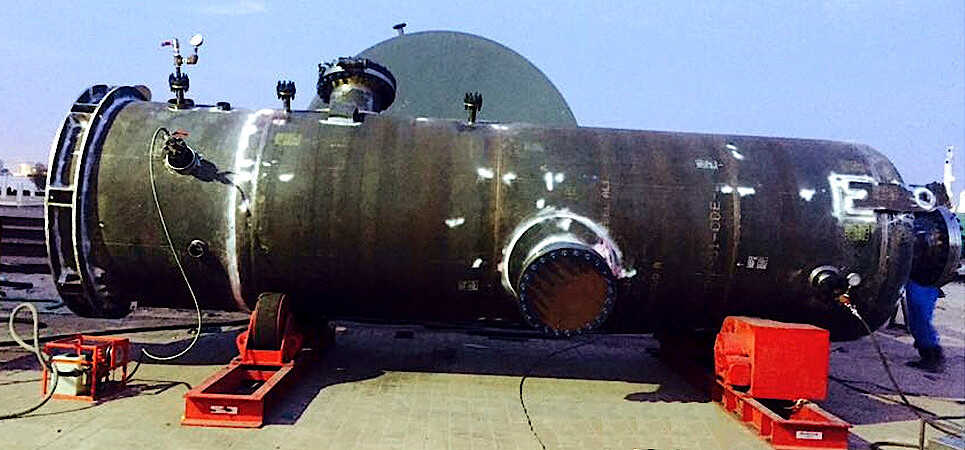

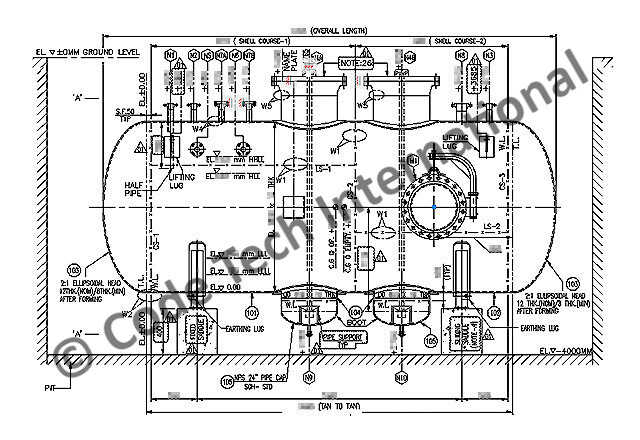

Pressure
Vessels

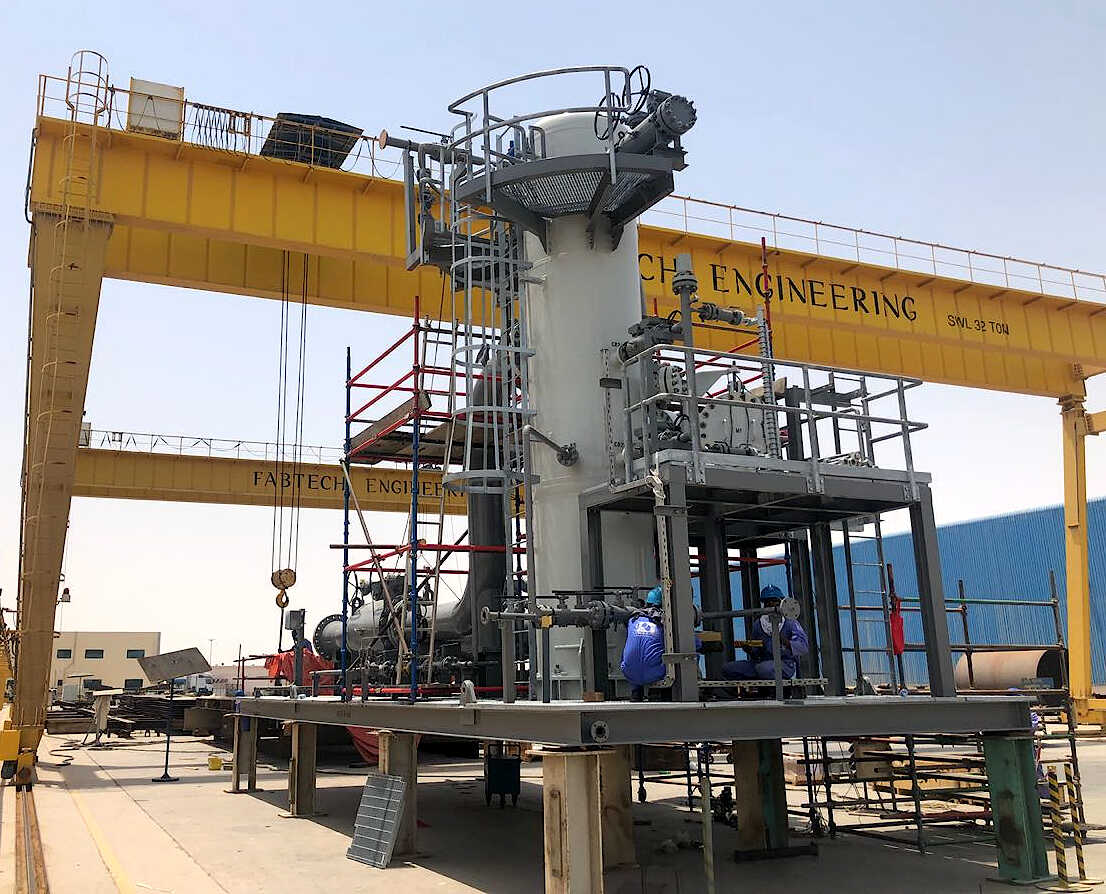

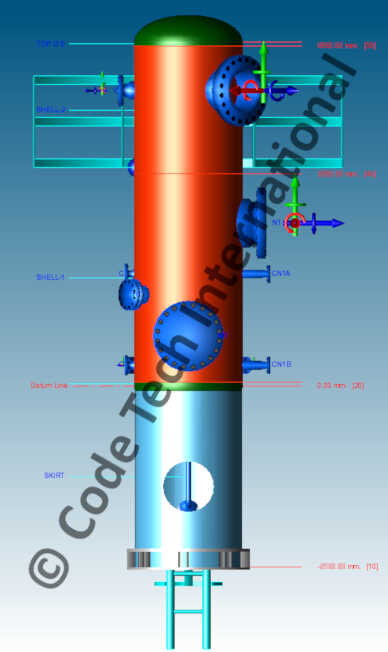

Gas Scrubber 1

WAPCo Takoradi RMS
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Section VIII Div. 2
  • Size : ID 1778 mm X 4325 TL-TL X 100 mm thk.
  • Capacity : 12.2 m3
  • Pressure : 153.1 bar(g)
  • Temperature : 80°C
  • Empty Weight : 37451 kg
  • Fluid : Hydrocarbon Gas / Hydrocarbon Liquid
  • Site : Takoradi, Ghana

Gas Scrubber 2

WAPCo Takoradi RMS
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Section VIII Div. 2
  • Size : ID 1219 mm X 4140 TL-TL X 45 mm thk.
  • Capacity : 5.3 m3
  • Pressure : 100 bar(g) / FV
  • Temperature : 80°C
  • Empty Weight : 12550 kg
  • Fluid : Hydrocarbon Gas / Hydrocarbon Liquid
  • Site : Takoradi, Ghana

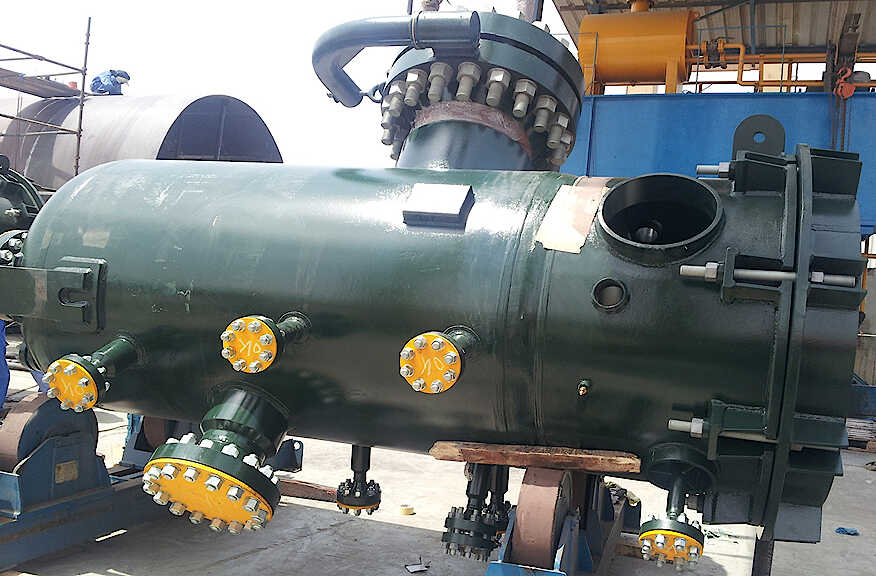

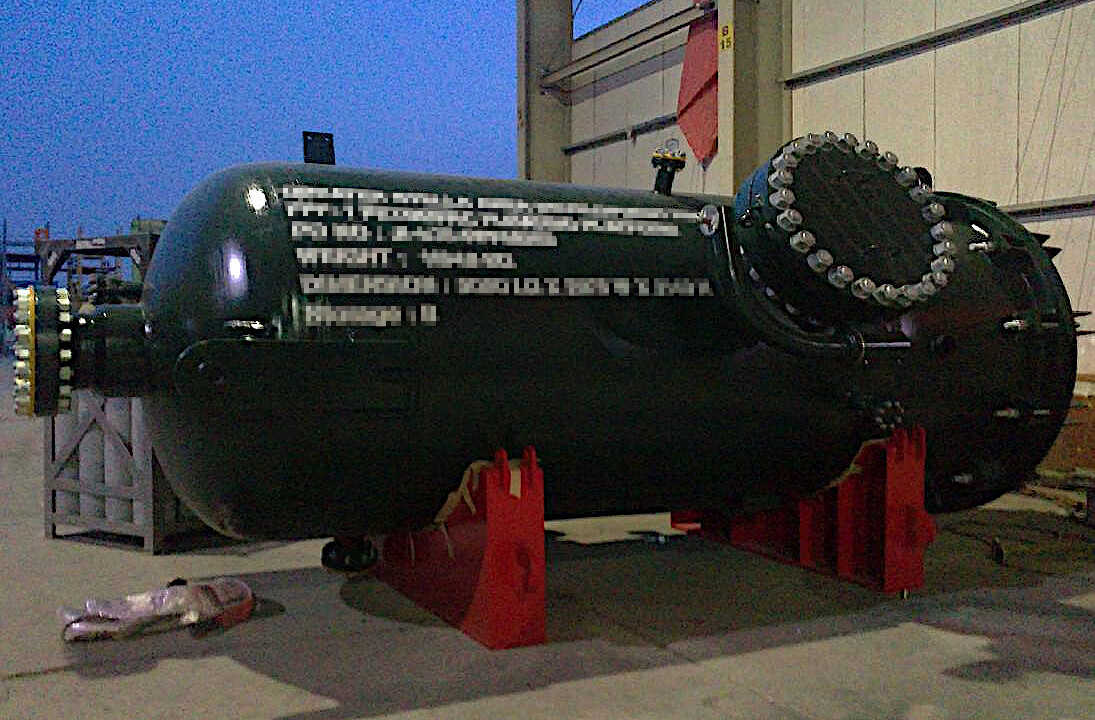

Second Stage Gas Compressor
Suction Drum

Greater Stella Area Development Project
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : PD 5500
  • Size : ID 1800 mm X 2800 TL-TL
  • Installation : Vertical
  • Pressure : 50 bar(g) / FV
  • Temperature : 150°C
  • Empty Weight : 11640 kg
  • Fluid : Wet Hydrocarbon Gas
  • MOC : CS (EN 10028/2 P355GH)
  • Location : Offshore Semi-submersible Floating Platform
  • Site : North Sea, U.K.

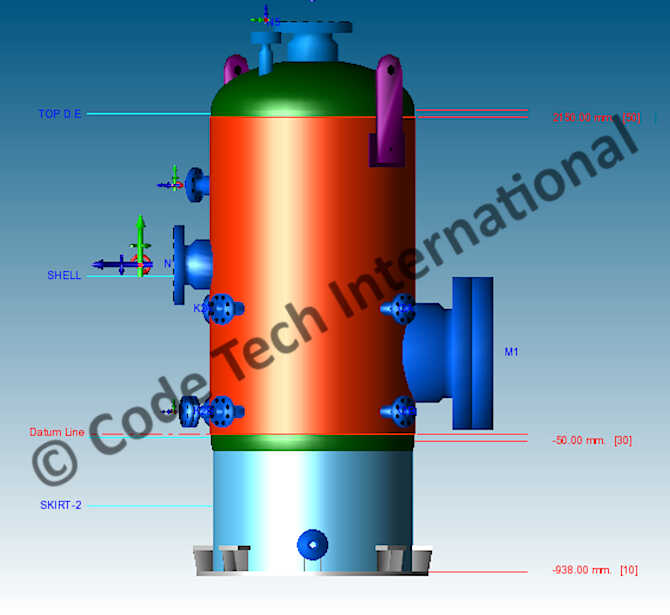

Third Stage Gas Compressor
Suction Drum

Greater Stella Area Development Project
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : PD 5500
  • Size : ID 1300 mm X 2250 TL-TL
  • Installation : Vertical
  • Pressure : 110 bar(g) / FV
  • Temperature : 65°C
  • Empty Weight : 9640 kg
  • Fluid : Wet Hydrocarbon Gas
  • MOC : CS (EN 10028/2 P355GH)
  • Location : Offshore Semi-submersible Floating Platform
  • Site : North Sea, U.K.

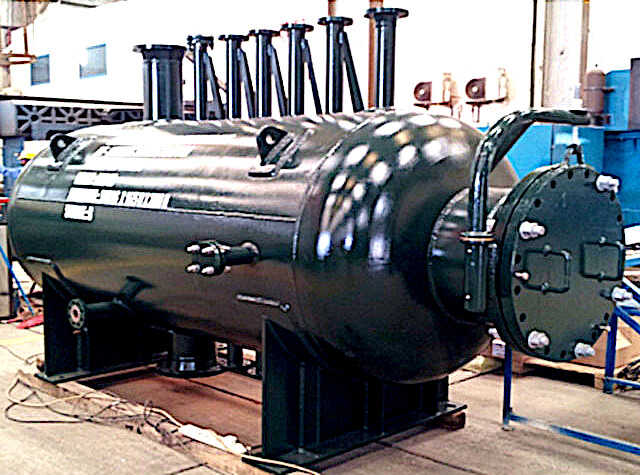

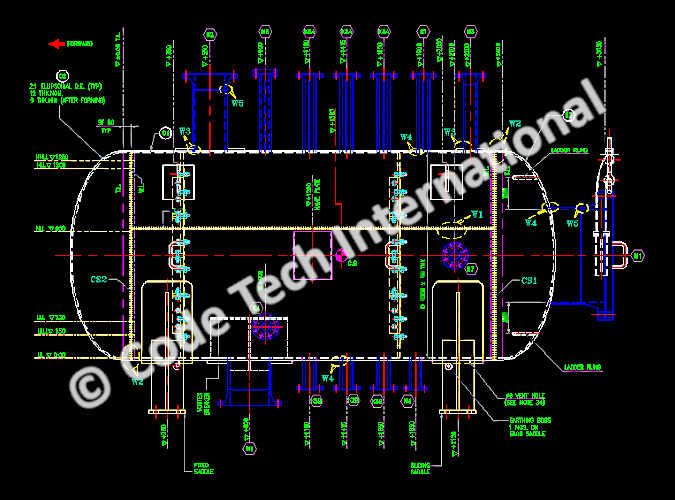

Cooling Medium Expansion Vessel

Petrofac Semi-submersible Floating Platform
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : PD 5500
  • Size : ID 1300 mm X 2400 TL-TL
  • Installation : Horizontal
  • Total Capacity : 3.8 m3
  • Pressure : 3.5 bar(g) / FV
  • Temperature : 65°C
  • Empty Weight : 2950 kg
  • MOC : CS (EN 10028/2 P355GH)
  • Location : Offshore Semi-submersible Floating Platform
  • Site : North Sea, U.K.

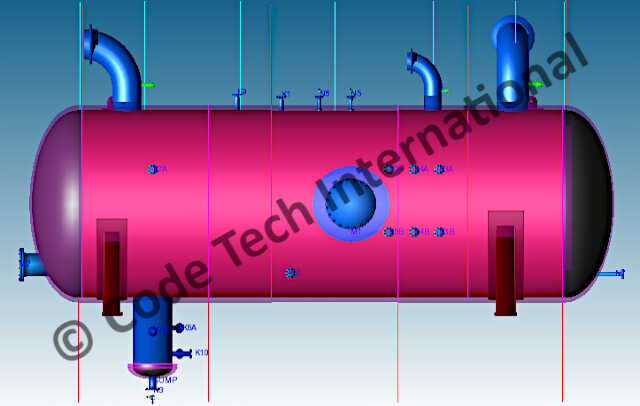

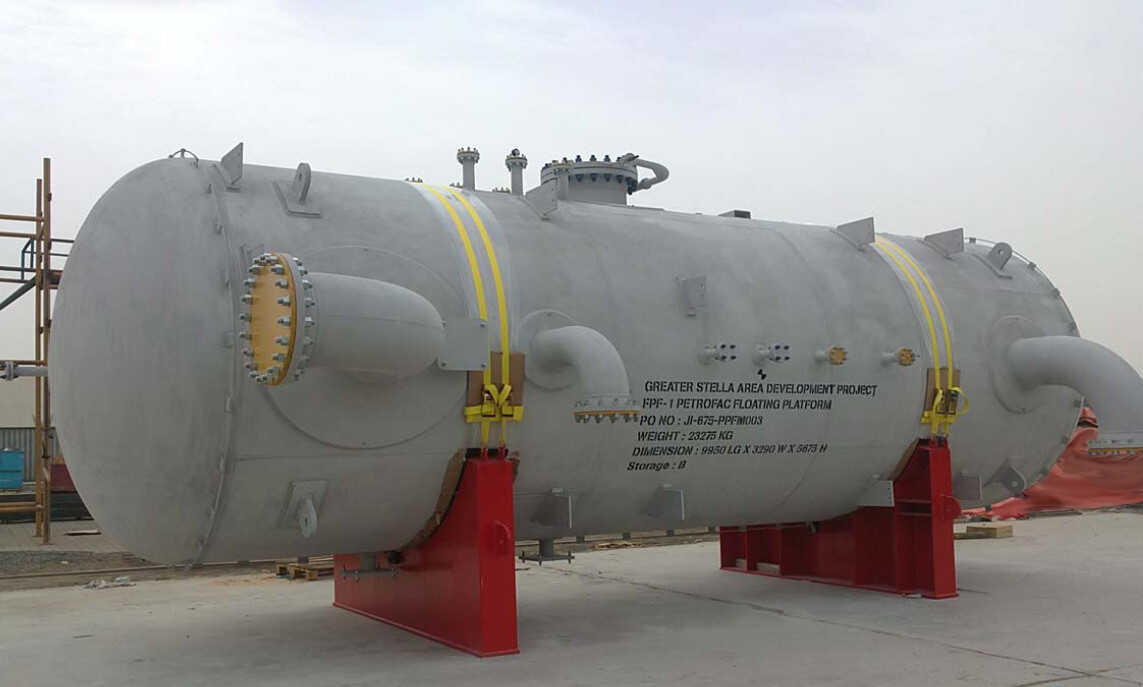

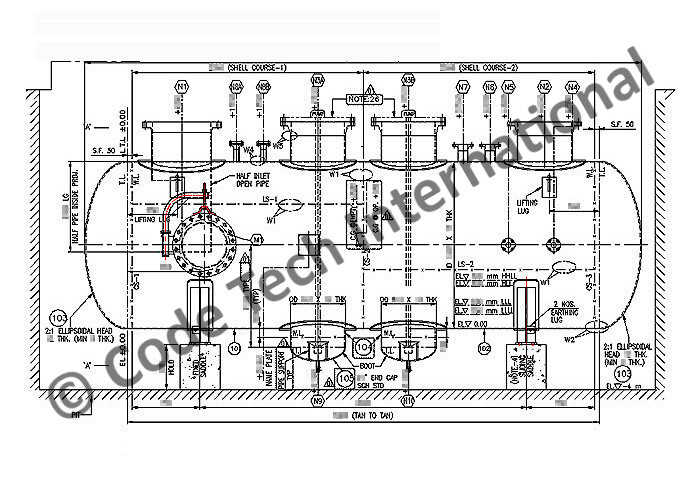

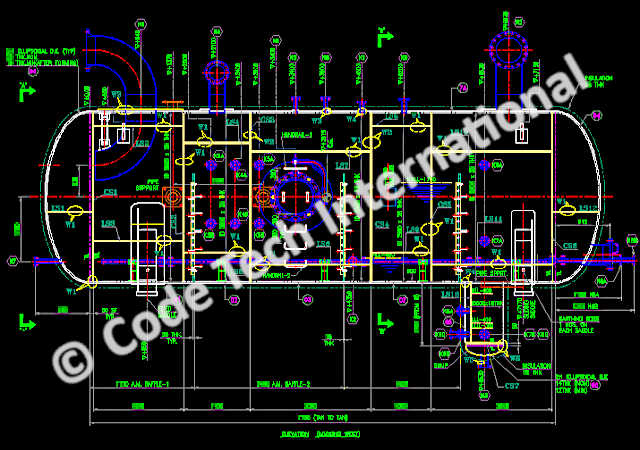

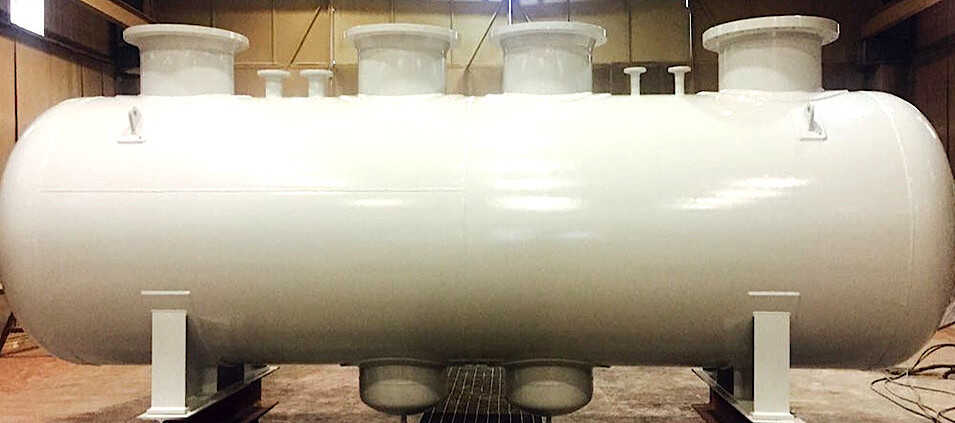

HP Flare Knockout Drum

Petrofac Semi-submersible Floating Platform
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : PD 5500
  • Size : ID 2900 mm X 7700 TL-TL
  • Installation : Horizontal
  • Total Capacity : 35.4 m3
  • Pressure : 10 bar(g) / FV
  • Temperature : 220°C
  • Empty Weight : 23275 kg
  • Fluid : Wet Hydrocarbon Gas
  • Location : Offshore Semi-submersible Floating Platform
  • Site : North Sea, U.K.

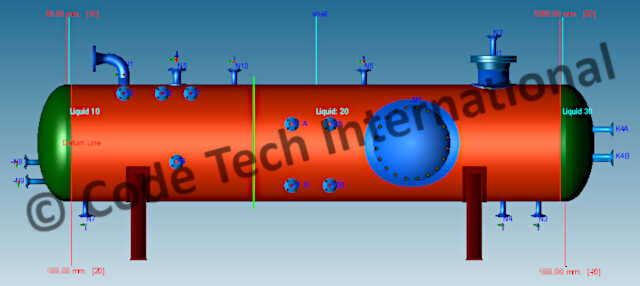

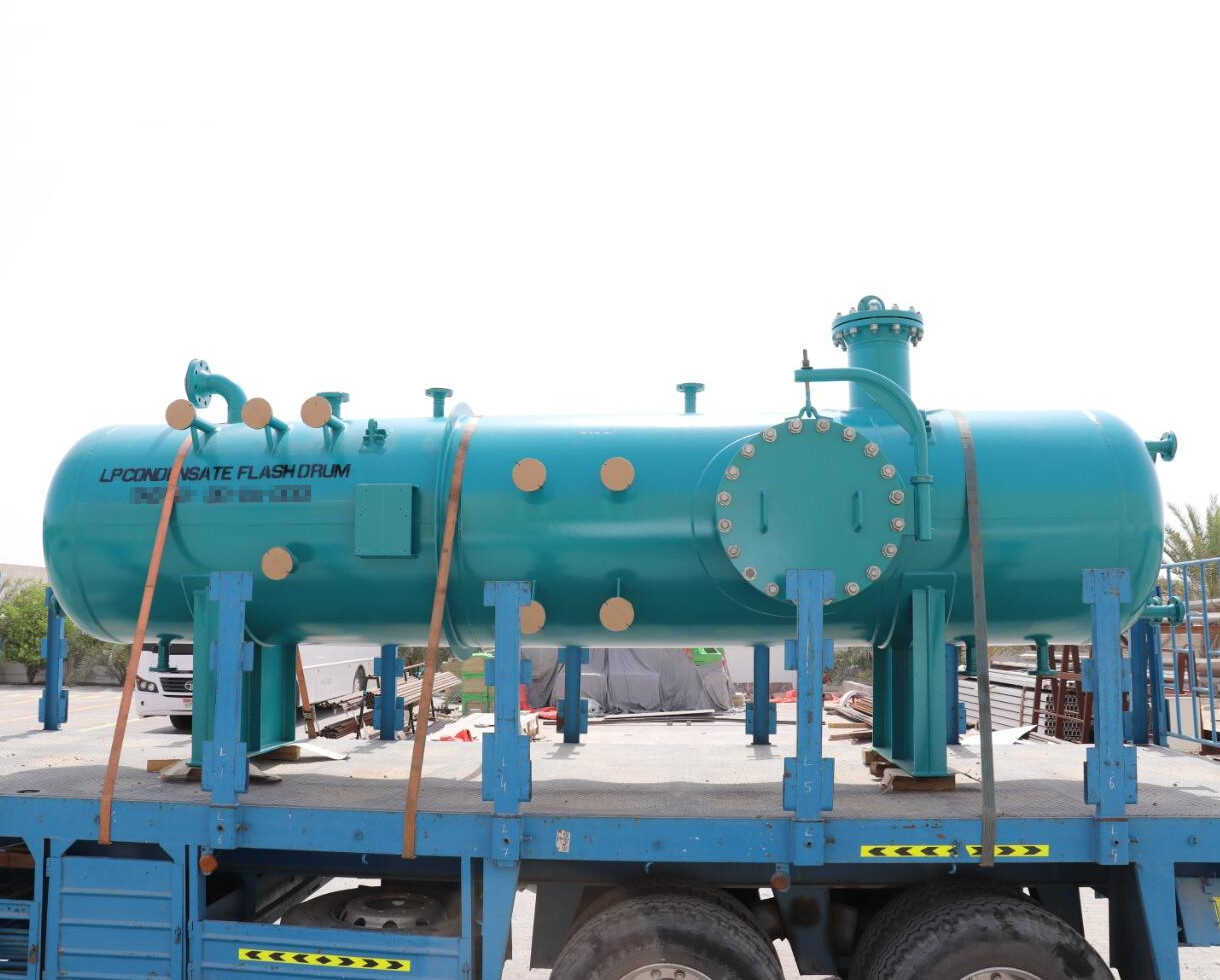

LP Condensate Flash Drum

EPF Gas Processsing Plant
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Section VIII Div. 1
  • Size : ID 1200 mm X 5200 TL-TL
  • Total Capacity : 5.34 m3
  • Pressure : 10.34 bar(g) / FV
  • Temperature : 93°C
  • Empty Weight : 3450 kg
  • Fluid : Hydrocarbon Gas / Condensate / Produced Water
  • MOC : SA 516 Gr. 70N

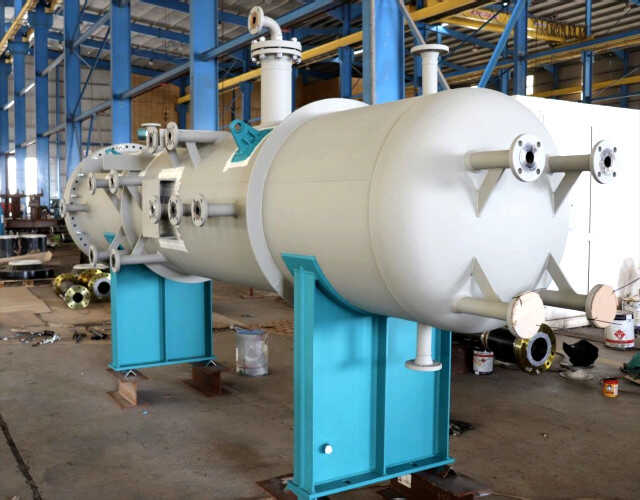

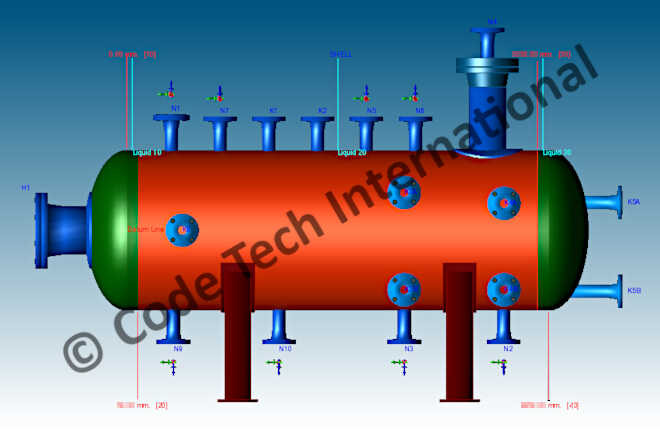

MEG Flash Drum

EPF Gas Processsing Plant
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code: ASME Section VIII Div. 1
  • Size: ID 700 mm X 1900 TL-TL
  • Total Capacity: 0.822 m3
  • Pressure: 10.34 bar(g) / FV
  • Temperature: 93°C
  • Empty Weight: 900 kg
  • Fluid: Rich Mono Ethylene Glycol (MEG)
  • MOC: SA 516 Gr. 70N

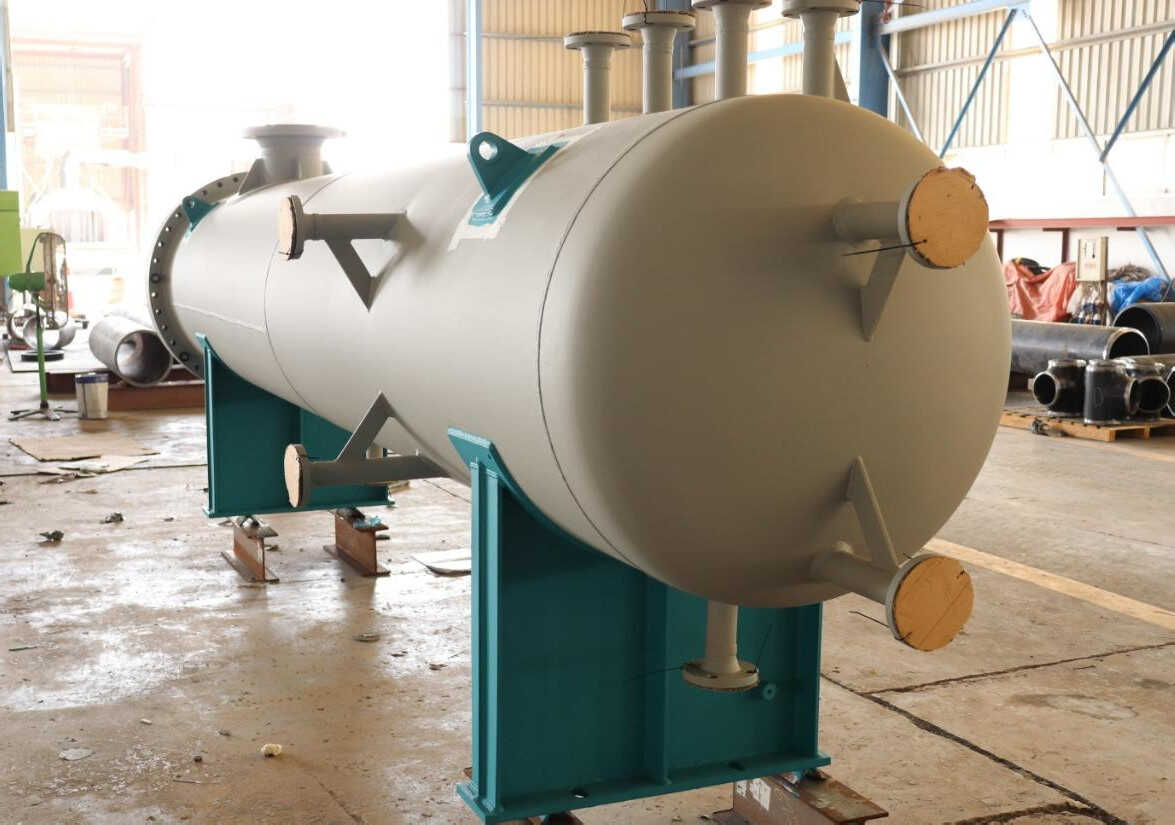

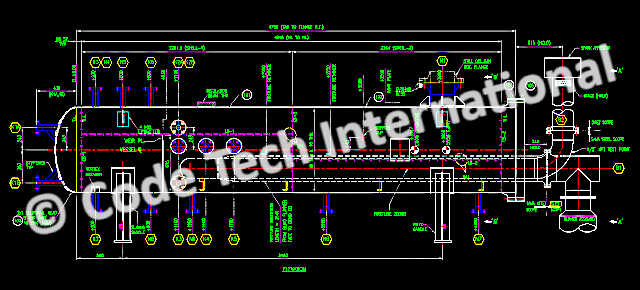

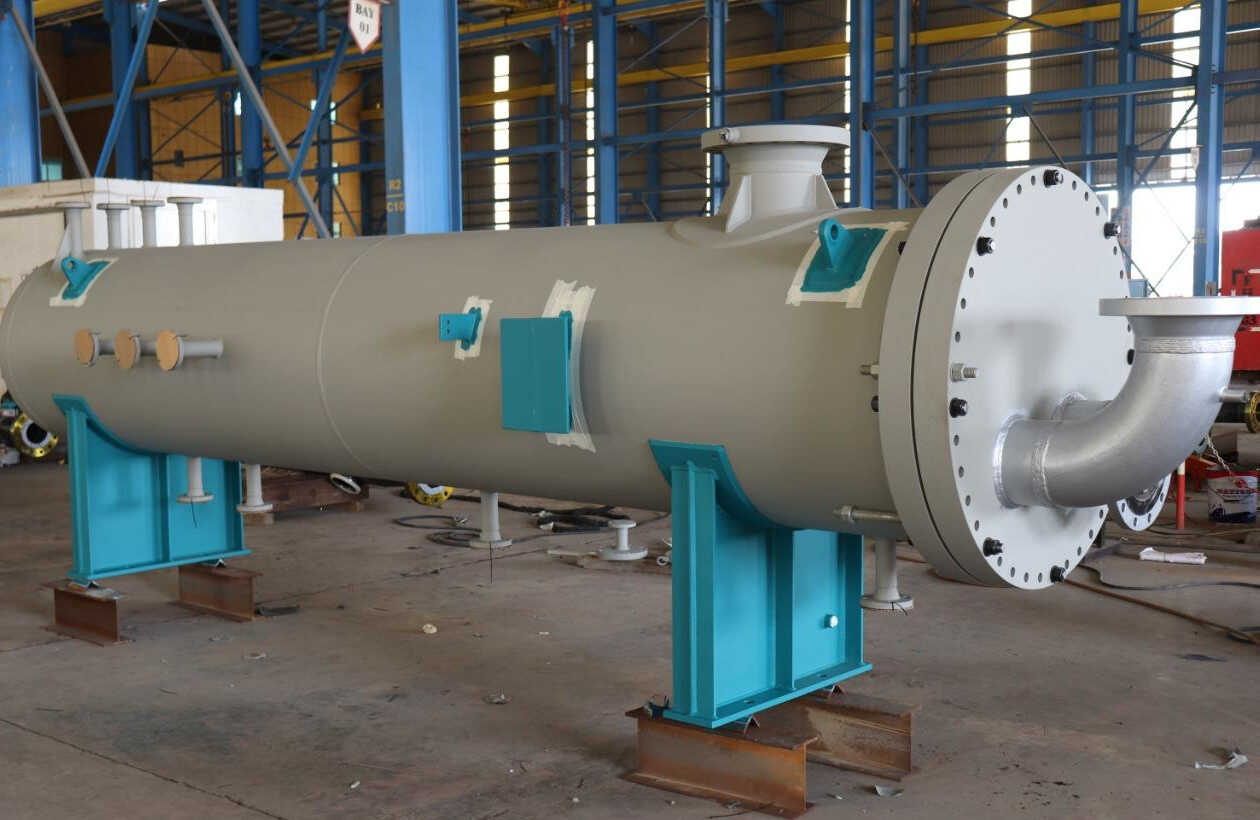

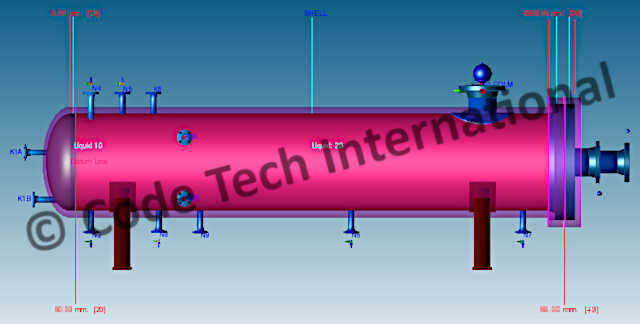

MEG Reboiler Surge Drum

EPF Gas Processsing Plant
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code: ASME Section VIII Div. 1
  • Size: ID 914 mm X 4545 WL-WL
  • Total Capacity: 3.23 m3
  • Pressure: 3.45 bar(g) / FV
  • Temperature: 163°C
  • Empty Weight: 5500 kg
  • Fluid: Mono Ethylene Glycol (MEG)
  • MOC: SA 516 Gr. 70N

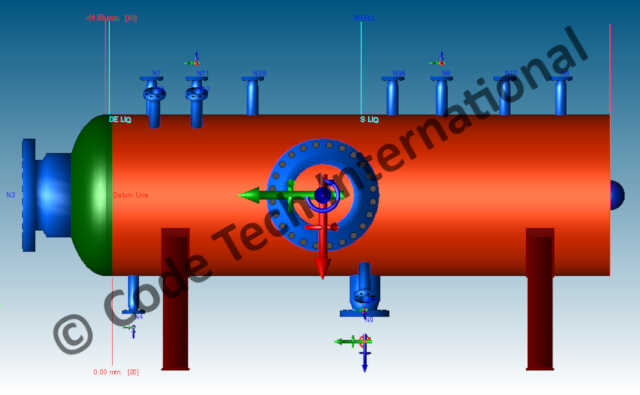

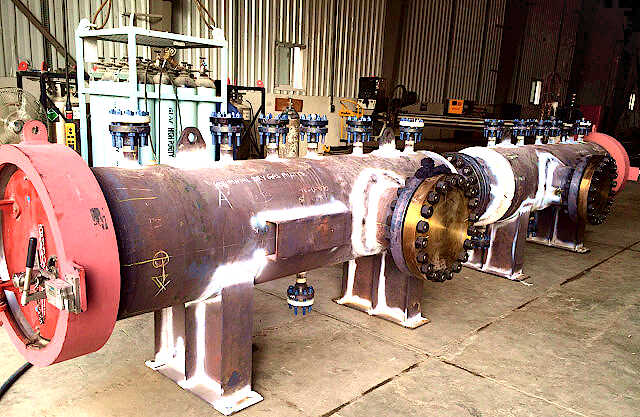

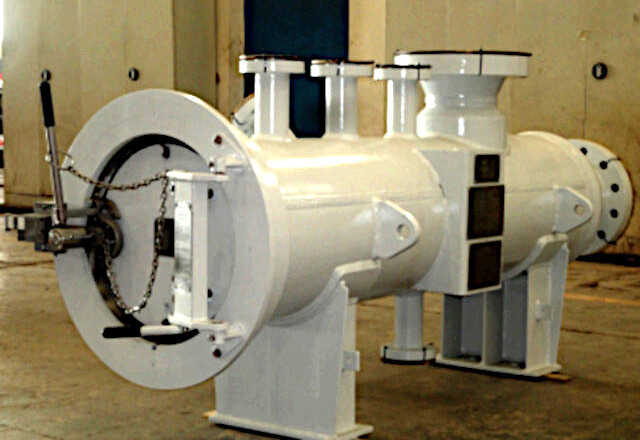

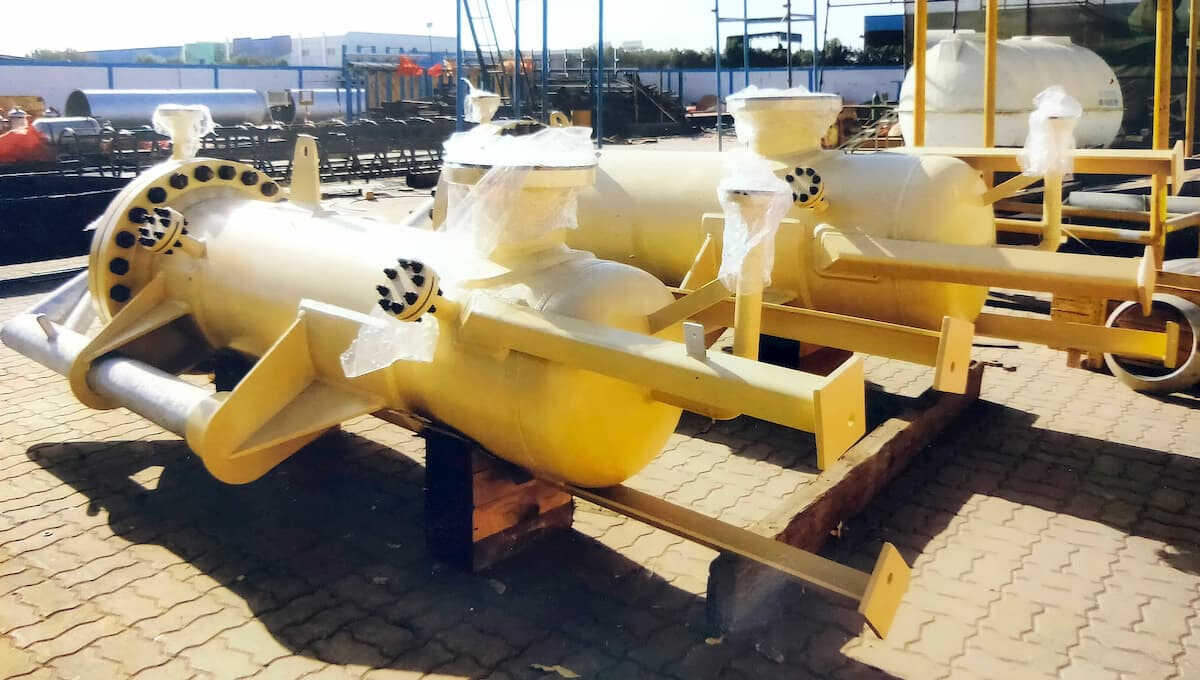

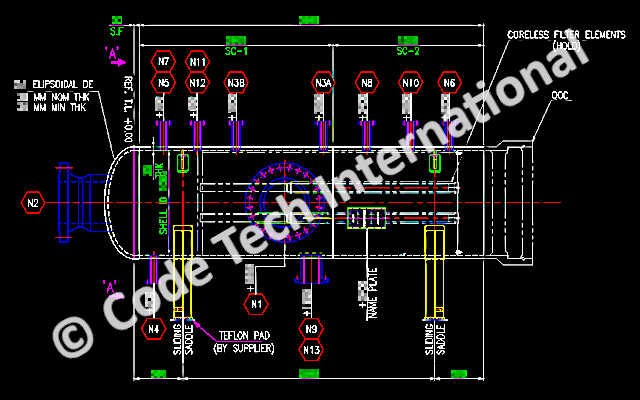

Dry Gas Filter

With Quick Opening Closure (QOC)
  • Scope of Work : Design and Analysis on PV-Elite + Detail Engineering
  • Design Code : ASME Section VIII Div. 1
  • Size : ID 1080 mm X 3600 WL-WL
  • Installation : Horizontal
  • Pressure : 63.5 bar(g) / FV
  • Temperature : 100°C
  • Empty Weight : 14680 kg
  • MOC : SA 516 Gr.65N (HIC Tested)

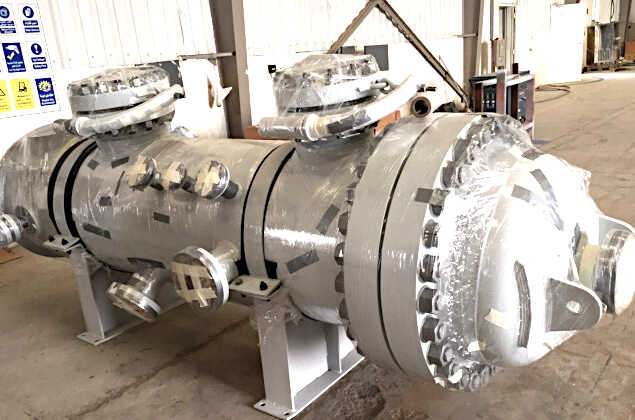

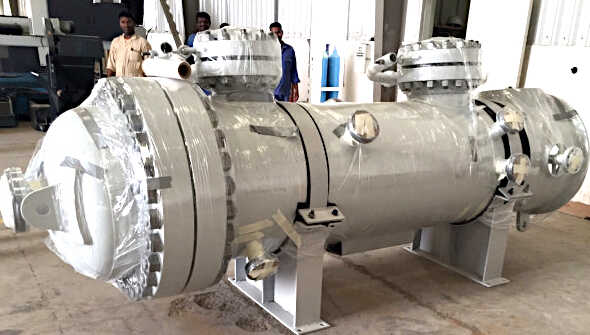

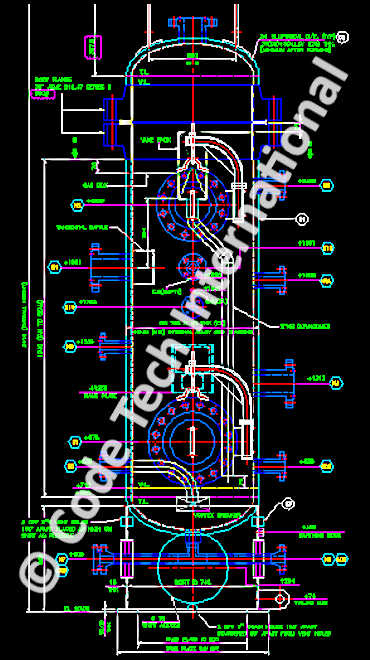

HP Fuel Gas Scrubber

  • Scope of Work : Design and Detail Engineering
  • Design Code : ASME Section VIII Div. 1
  • Size : OD 762 mm X 1940 TL-TL
  • Installation : Vertical
  • Pressure : 102 bar(g)
  • Temperature : 38°C
  • Empty Weight : 3450 kg
  • MOC : SA 516M Gr. 70N

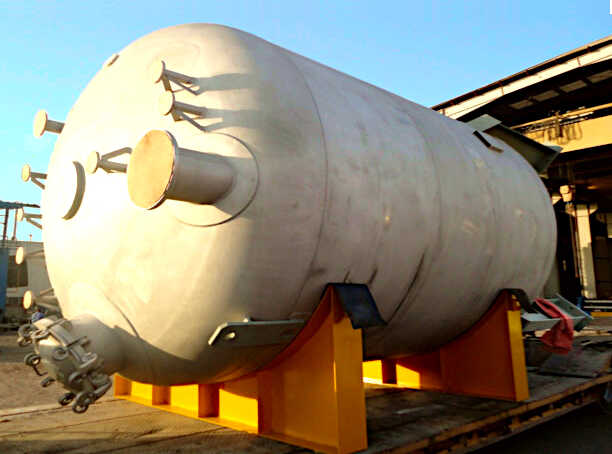

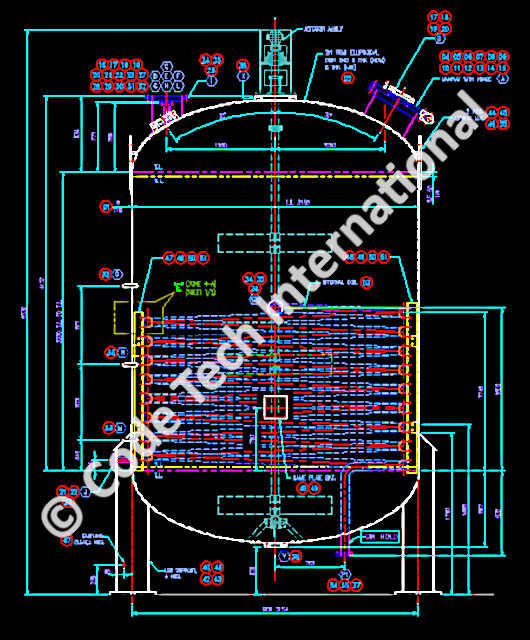

Saturated Resin Blender

With Heating and Cooling Coils
  • Scope of Work : Design and Detail Engineering
  • Design Code : Good Engineering Practices
  • Size : ID 3150 mm X 6230 TL-TL
  • Capacity : 33.4 m3
  • Installation : Vertical
  • Pressure : Vessel — Full Liquid; Internal Coil — 8 bar(g)
  • Temperature : 300°C (Both Sides)
  • Empty Weight : 5500 kg

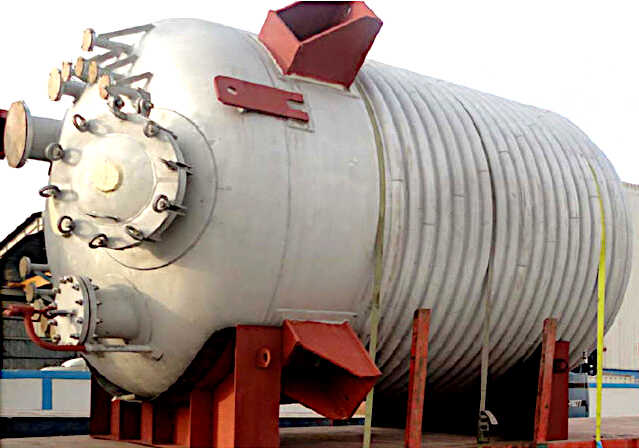

Alkyd Resin Reactor

With Heating and Cooling Coils
  • Scope of Work : Design and Detail Engineering
  • Design Code : ASME Section VIII Div. 1
  • Size : ID 2760 mm X 3000 TL-TL
  • Installation : Vertical
  • Pressure : Shell-side — 3.6 bar(g); Limpet-side — 7.2 bar(g)
  • Temperature : 300°C (Both Sides)
  • Empty Weight : 8500 kg
  • MOC : SS304L

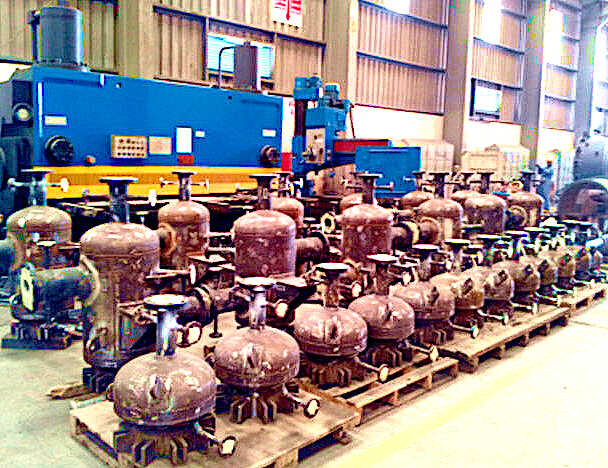

Jacketed Vessels

Burst Tested as per UG-101(m) for Design Validation
  • Scope of Work : Design and Detail Engineering
  • Design Code: ASME Section VIII Div. 1
  • Jacket Size: ID 280 / 454 mm X 1160 TL-TL
  • Vessel Size: ID 231 / 405 mm X 1060 TL-TL
  • Capacity: 380 BBL
  • Pressure (Jacket / Vessel) : 5.6 / 14.2 psig
  • Temperature (Jacket / Vessel) : 178 / 190°C
  • Empty Weight : 762 kg
  • Comments : These small jacketed vessels have a cleat arrangement for end closure, which makes its design as well as fabrication a challenge.
